2409_064 (2409-002)
Immersive

2409064

2409-002X
Explore
Specifications
Series
24
Collection
09
Style
064
Type
Manual
Caliber
2409
Design Code
002
Gender
Mens
Years
1974
Dial Color
Turquoise
Case Material
SS
Case Color
N/A
Crystal
Hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥23
Information is approximate. Field verification recommended.
Parts 11
Dial & Hands7
Dial884241
Hour Hand09C18ASH
Hour Hand09C18CKΗ
Minute Hand09C18ASM
Minute Hand09C18CKM
Second Hand10SC03NS
Second Hand10SC05EB
Case & Crystal3
Crown45R29NS
Gasket - Case BackOB2485B
Winding Stem354242
Band & Clasp1
Push PinA1700S
Sources
'75 Seiko Casing Parts List pp. 55–56
2409-0020, 2409-0020

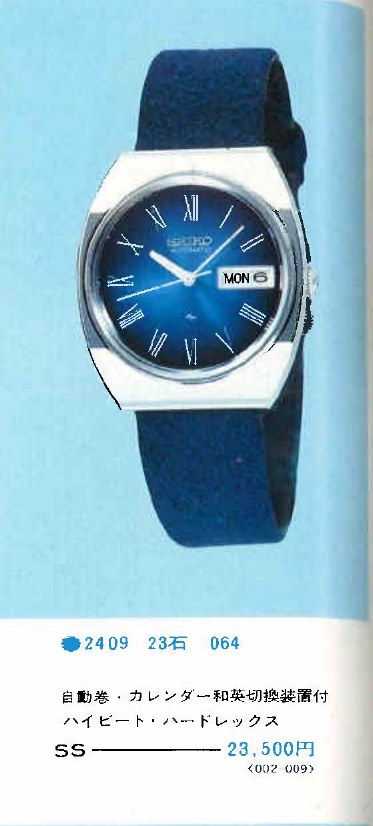

'74 1974 Seiko Catalog V2 p. 37 · ¥24,000
2409 064

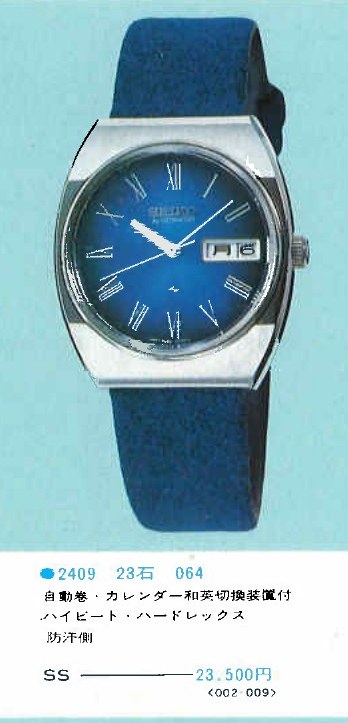

'74 1974 Seiko Catalog V1 p. 68 · ¥23,500
2409 064
Clippings
Casing Parts Spread
