52KWL_036
Immersive

52KWL036

5256-500X
Explore
Specifications
Series
52
Collection
KWL
Style
036
Type
Automatic
Caliber
5256
Design Code
500
Gender
Mens
Years
1974
Dial Color
Green
Case Material
SS
Case Color
N/A
Crystal
Cut-hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥41
Information is approximate. Field verification recommended.
Parts 8
Case & Crystal5
Crown[Ref:24] 45W51N
Crystal[Ref:362] ESOV13GC
Gasket - Glass[Ref:400] EK2860B
Gasket Retaining Ring (Gasket Retaining Ring (パッキン保持リング))8998221
Winding Stem354026
Dial & Hands1
Holding Ring for DialA2001S
General2
884039
Yoke (Yoke (オシドリ))383012
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-126
5256-5000

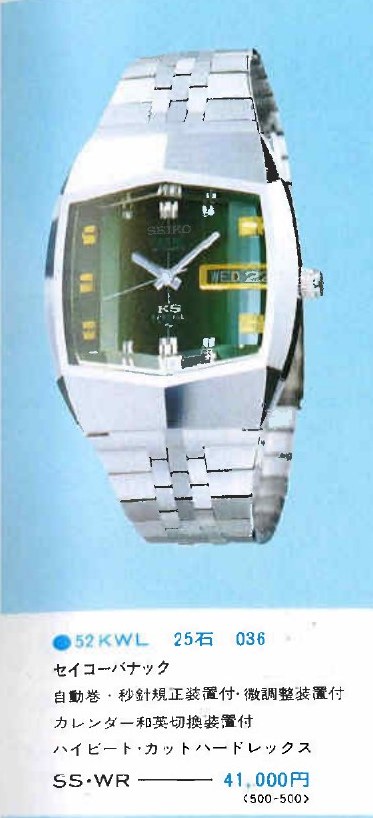

'74 1974 Seiko Catalog V1 p. 27
52KWL_036
Clippings
Casing Parts Spread
