5626-711
Immersive

56KAW120

5626-711X
Explore
Specifications
Series
56
Collection
KAW
Style
120
Type
Automatic
Caliber
5626
Design Code
711
Gender
Mens
Years
1972 - 1975
Dial Color
Cream
Case Material
N/A
Case Color
Silver
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case № 3
5626-7110 5626-7111 5626-7113
Parts 12
Case & Crystal6
Bezel8333884
Crown[Ref:101] 55M12E
Crystal[Ref:190] 300V16GN
Gasket - Case Back[Ref:109] FH2980B
Gasket - Glass[Ref:304] EC2818B
Winding Stem354560
Dial & Hands2
Holding Ring for Dial884560
Holding Ring for Dial884574
Band & Clasp1
Push PinA1801S
General3
part383560
part383561
spring8133016
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-136
5626-7110

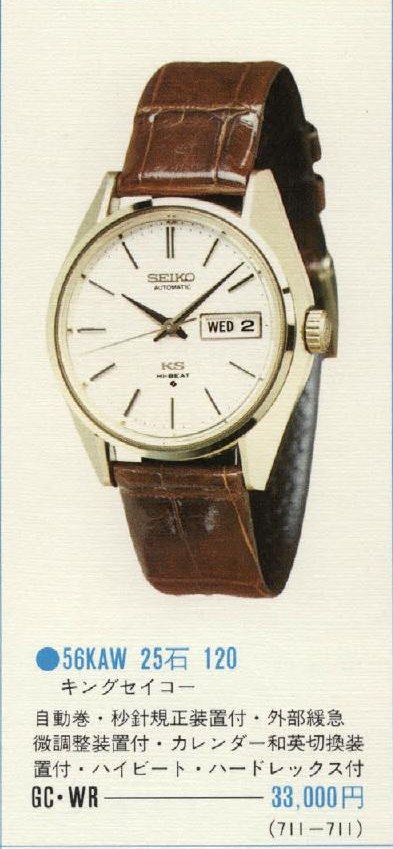

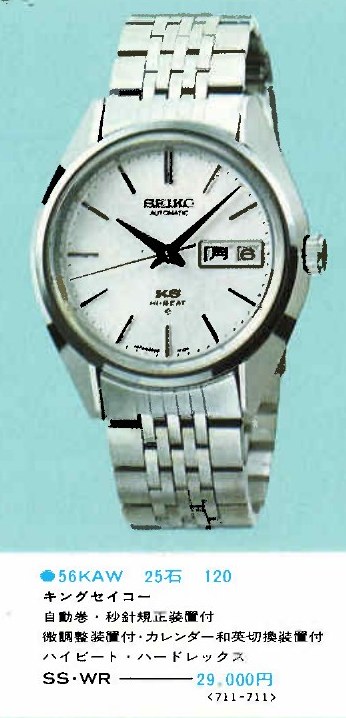

'72 1972 Seiko JDM Catalog p. 19 · ¥33,000
56KAW 120

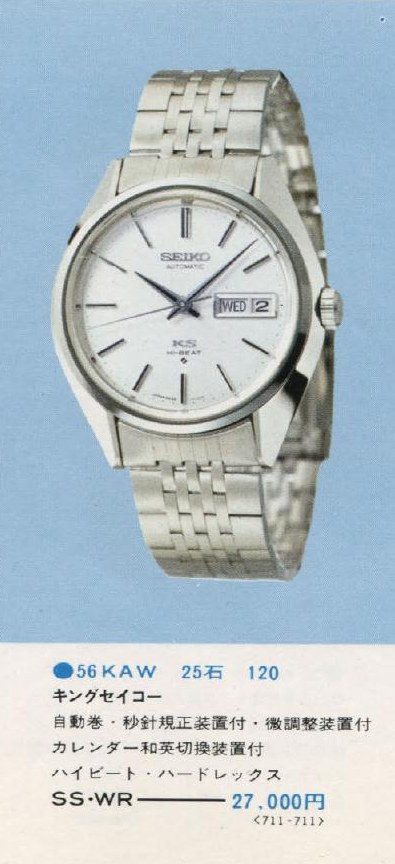

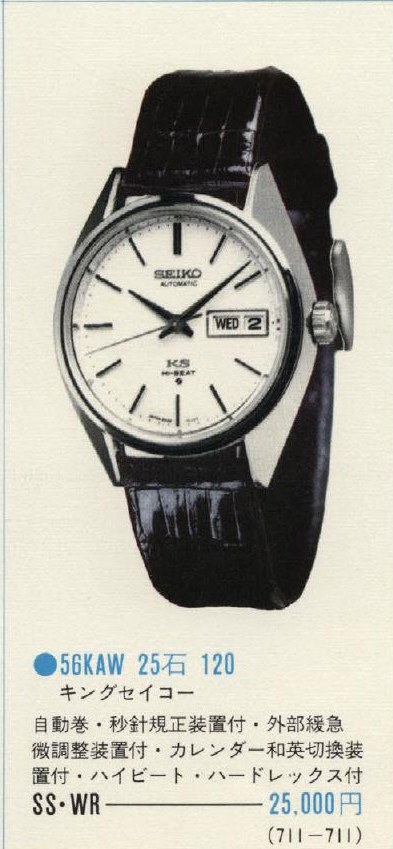

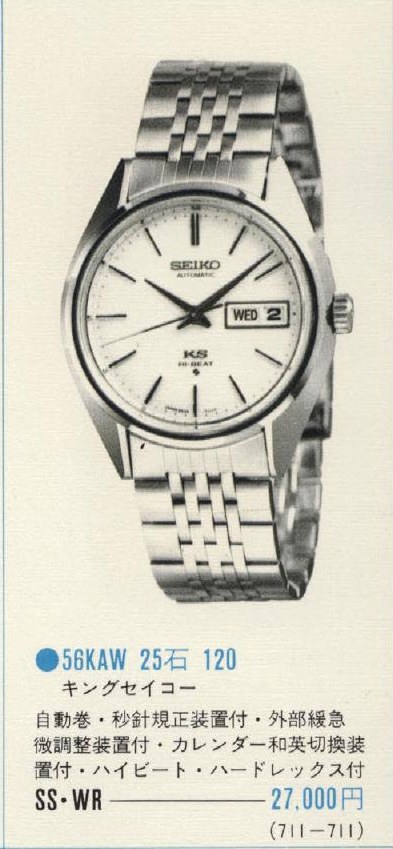

'72 1972 Seiko JDM Catalog p. 20 · ¥27,000
56KAW 120

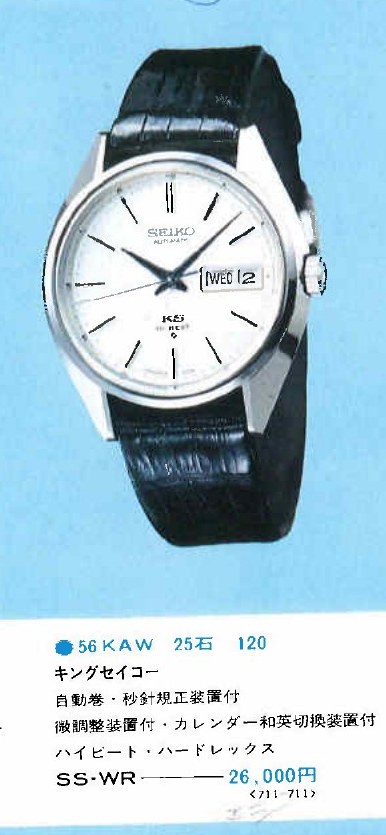

'74 1974 Seiko Catalog V2 p. 19
56KAW 120

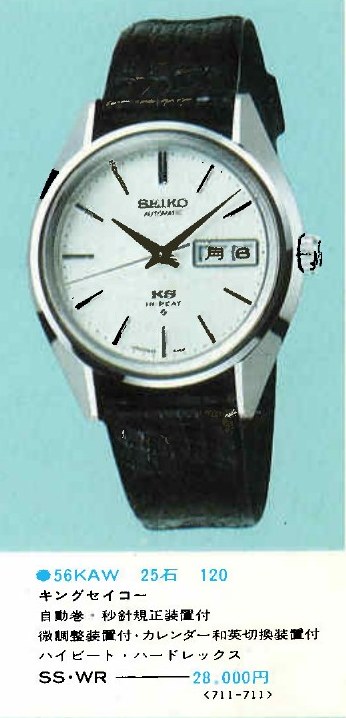

'73 1973 Seiko JDM Catalog Vol.2 p. 21
56KAW_120

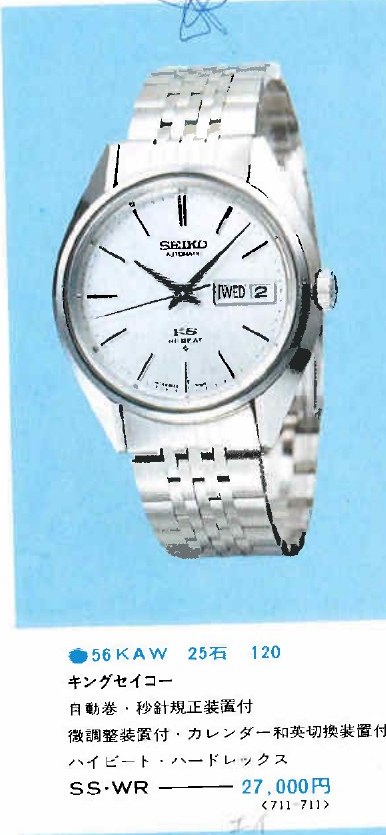

'73 1973 Seiko JDM Catalog Vol.2 p. 22
56KAW_120

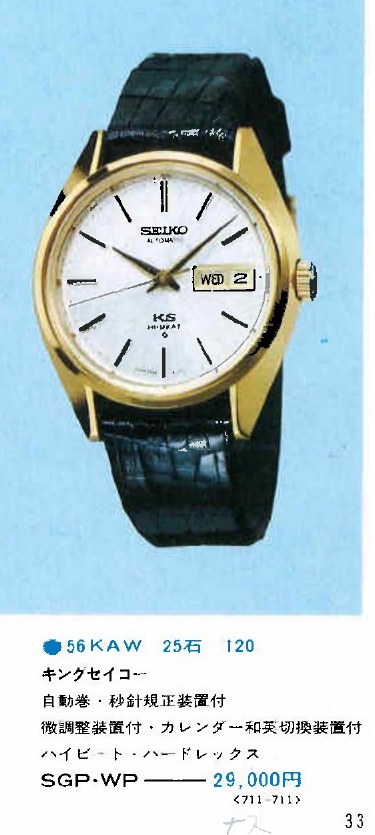

'74 1974 Seiko Catalog V1 p. 31
56KAW_120

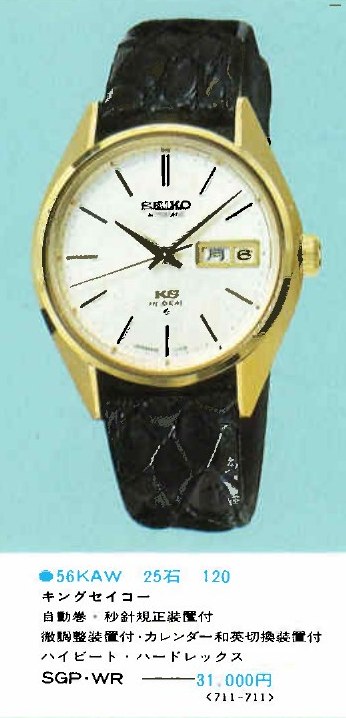

'74 1974 Seiko Catalog V1 p. 32
56KAW_120
