5625-704
Immersive

56KCM030

5625-704X
Explore
Specifications
Series
56
Collection
KCM
Style
030
Type
Automatic
Caliber
5625
Design Code
704
Gender
Mens
Years
1971 - 1974
Dial Color
White
Case Material
N/A
Case Color
Silver
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case № 2
5625-7040 5625-7041
Parts 11
Case & Crystal6
Crown[Ref:73] 55M02E
Crystal[Ref:113] 300V04GN
Crystal[Ref:190] 300V16GN
Gasket - Case Back[Ref:109] FH2980B
Gasket - Glass[Ref:304] EC2818B
Winding Stem354560
Gears & Train1
Setting Lever (Setting Lever (オンドリ))383561
Movement1
Movement Holder (Movement Holder (機械固定バ))8133016
Dial & Hands1
Holding Ring for DialA1801S
General2
884560
Rotating Ring83338509
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-134
5625-7040

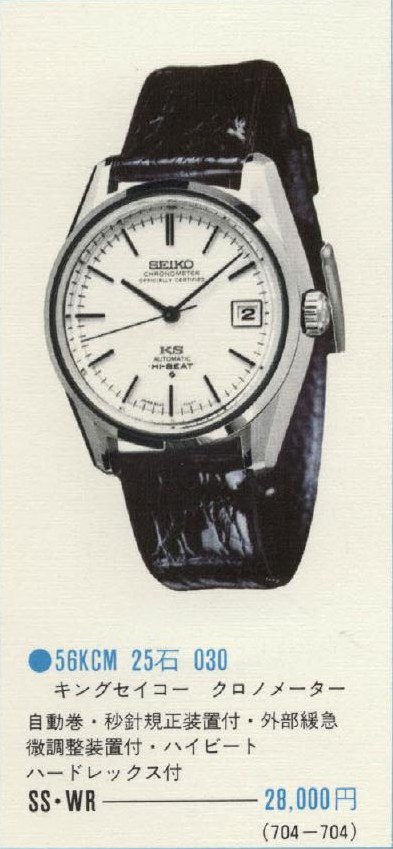

'71 1971 Seiko JDM Catalog No.1 p. 8 · ¥28,000
56KCM 030

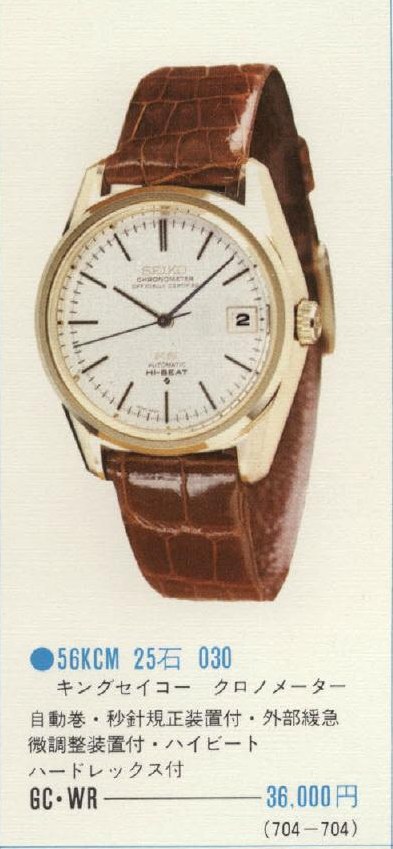

'72 1972 Seiko JDM Catalog p. 18 · ¥36,000
56KCM 030

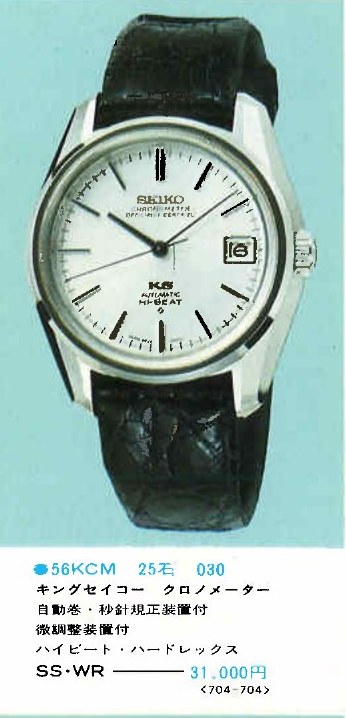

'74 1974 Seiko Catalog V2 p. 19 · ¥31,000
56KCM 030

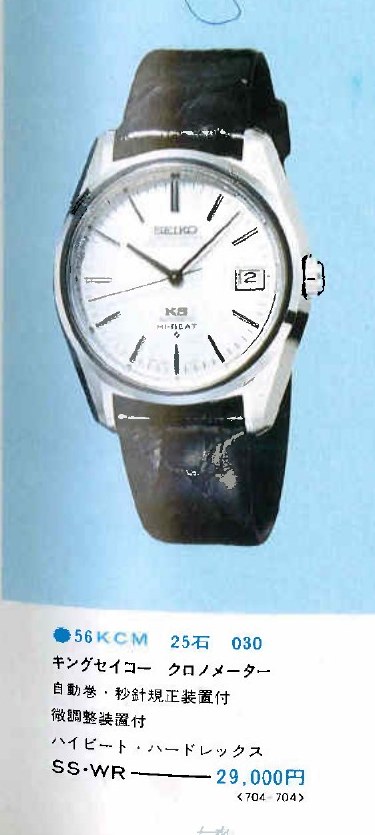

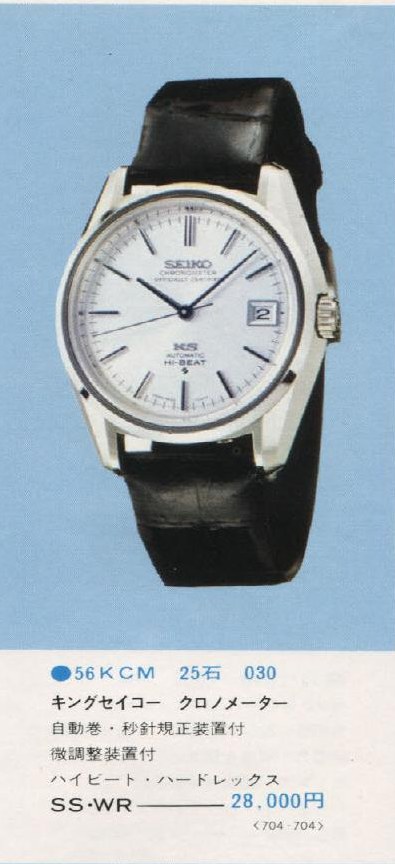

'74 1974 Seiko Catalog V1 p. 31 · ¥29,000
56KCM 030

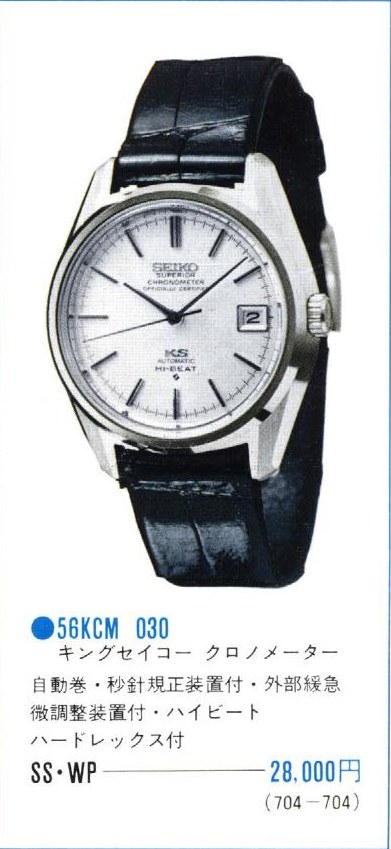

'73 1973 Seiko JDM Catalog Vol.2 p. 21
56KCM_030
