5626-717
Immersive

56KWM062

5626-717X
Explore
Specifications
Series
56
Collection
KWM
Style
062
Type
Automatic
Caliber
5626
Design Code
717
Gender
Mens
Years
1973 - 1974
Dial Color
Grey
Case Material
N/A
Case Color
Silver
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case № 2
5626-7170 5626-7171
Parts 11
Case & Crystal7
Bezel83338359
Crown[Ref:101] 55M12E
Crown[Ref:73] 55M02E
Crystal[Ref:325] 300V98GC
Gasket - Case Back[Ref:304] EC2818B
Gasket - Crown Stem[Ref:109] FH2980B
Winding Stem354560
Gears & Train1
Setting Lever (Setting Lever (オンドリ))383561
Movement1
Movement Holder (Movement Holder (機械固定))8133016
Dial & Hands1
Holding Ring for Dial884574
Band & Clasp1
Push PinA1701S
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-137
5626-7170

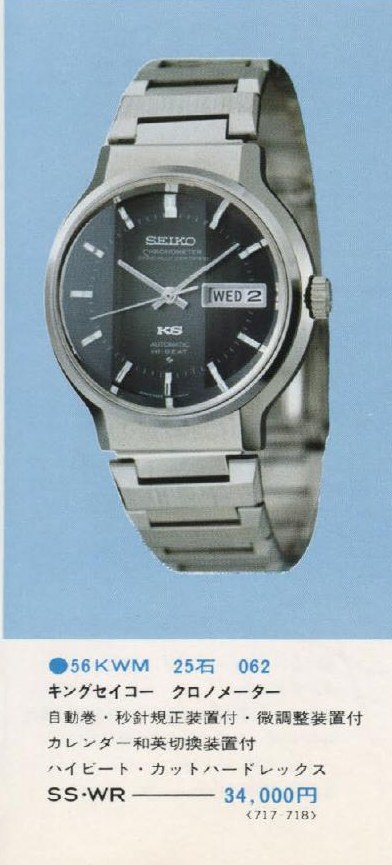

'74 1974 Seiko Catalog V2 p. 19 · ¥34,000
56KWM 062

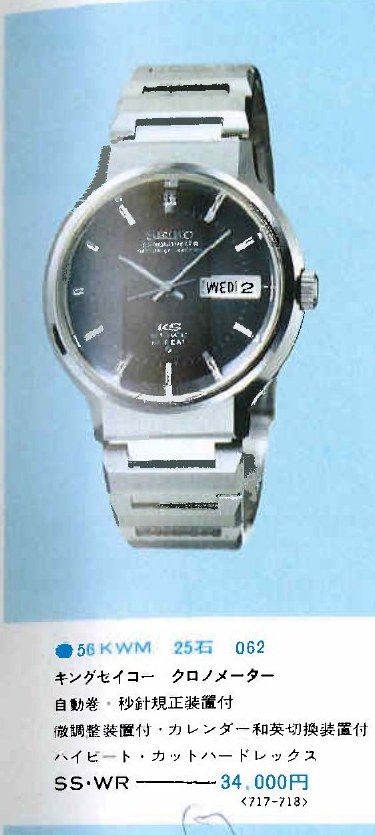

'73 1973 Seiko JDM Catalog Vol.2 p. 20
56KWM_062

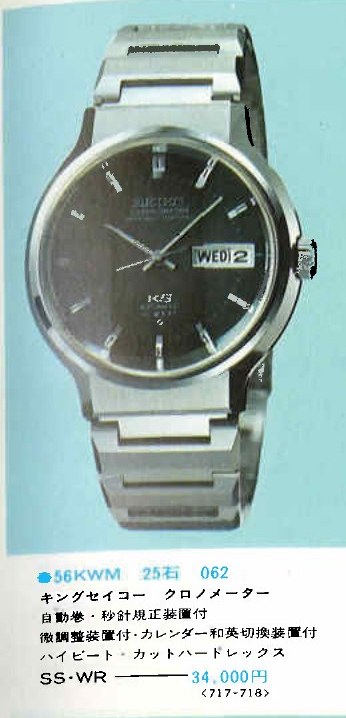

'74 1974 Seiko Catalog V1 p. 31
56KWM_062
