SEI型 5606-707

Specifications

Series

56

Collection

LMW

Style

050

Type

Automatic

Caliber

5606

Design Code

707

Gender

Mens

Years

1969 - 1974

Dial Color

Cream

Case Material

N/A

Case Color

Gold

Crystal

N/A

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

N/A

Information is approximate. Field verification recommended.

Case № 3

5606-7070 5606-7071 5606-7072

Parts 15

Case & Crystal7

Backup Ring (Backup Ring (バックアップリング))	8999973
Crown	[Ref:104] 45M30N
Crown	[Ref:72] 45M04N
Crystal	[Ref:113] 300V04GN
Gasket - Case Back	[Ref:109] FH2980B
Gasket - Case Back	[Ref:304] EC2818B
Winding Stem	354560

Dial & Hands3

Dial Ring	83338479
Dial Ring	8336938
Holding Ring for Dial	884574

Gears & Train2

Setting Lever (Setting Lever (オンドリ))	383560
Setting Lever (Setting Lever (オンドリ))	383561

Movement1

Movement Holding Spring (Movement Holding Spring (機械固定バネ))

8133016

Band & Clasp1

Push Pin

A1801S

General1

ring

8320993

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-129

5606-7070

'75 Seiko Casing Parts List pp. 79–80

5606-7070

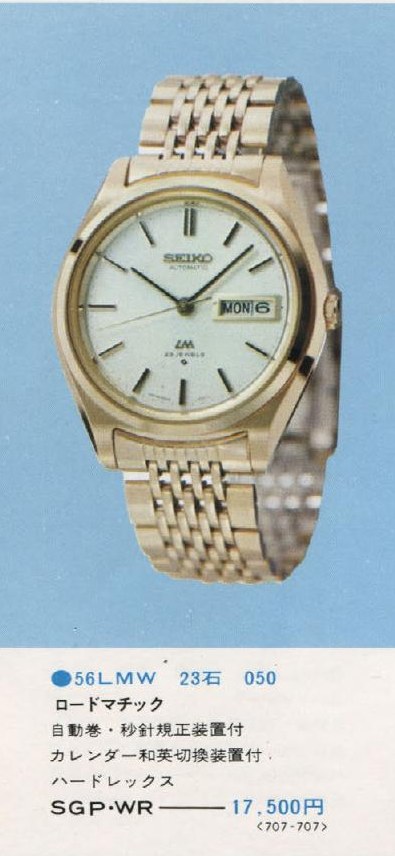

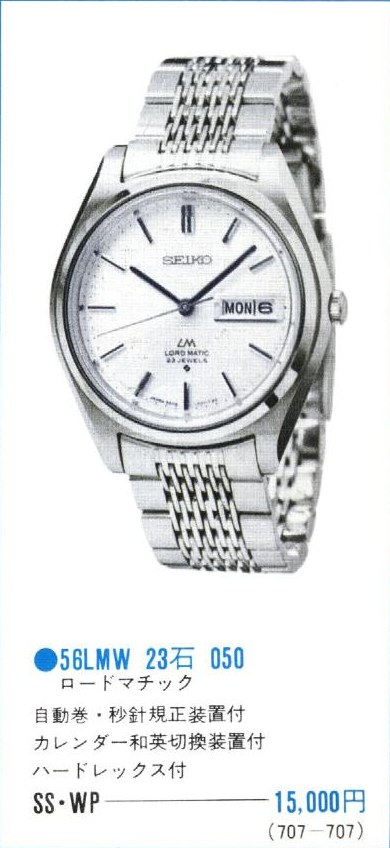

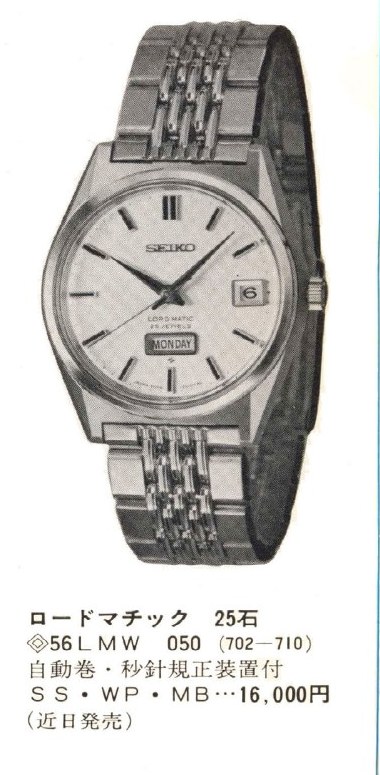

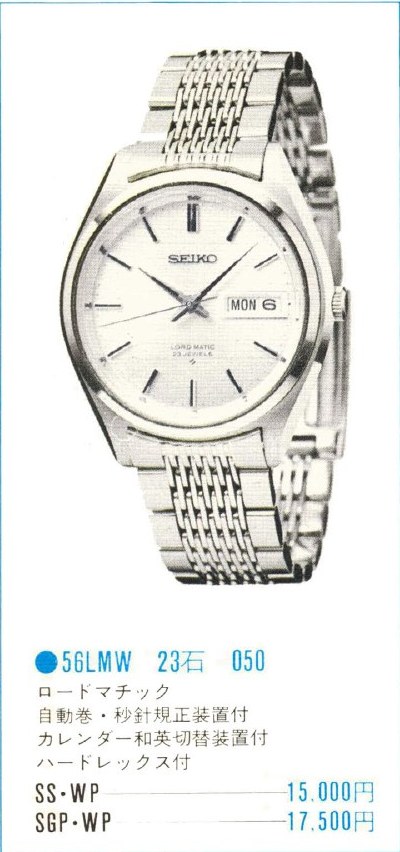

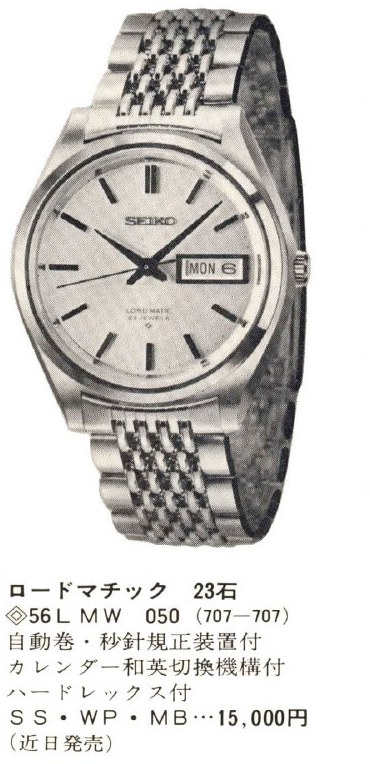

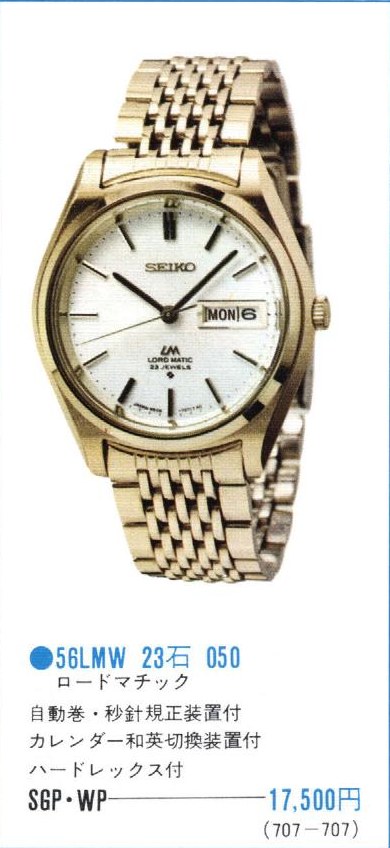

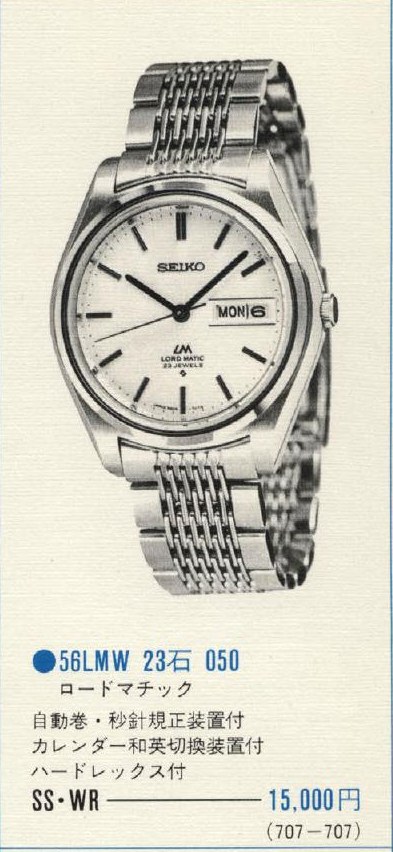

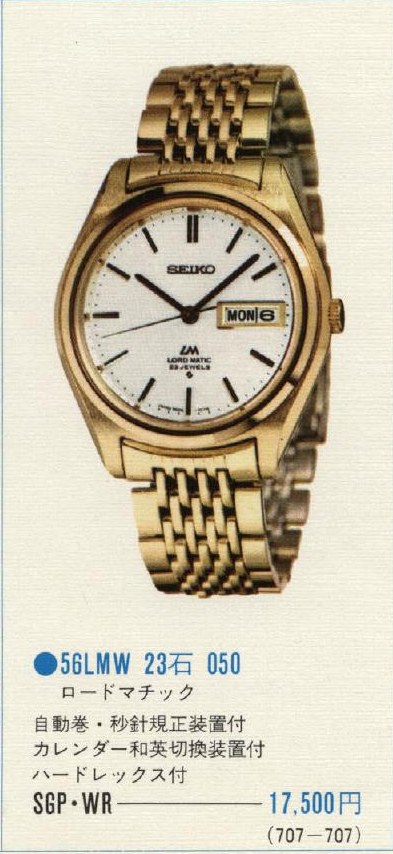

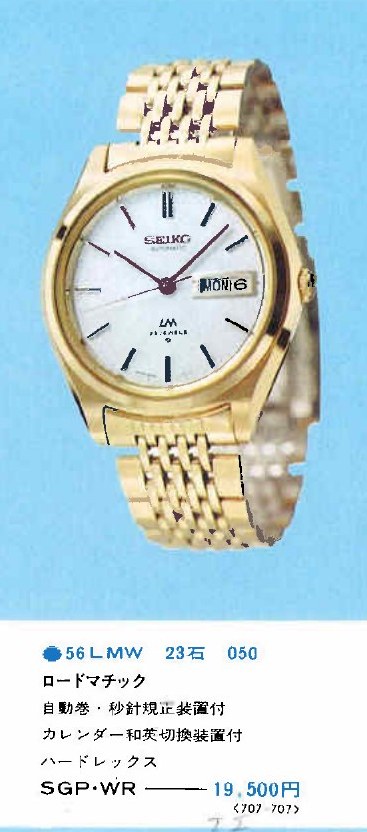

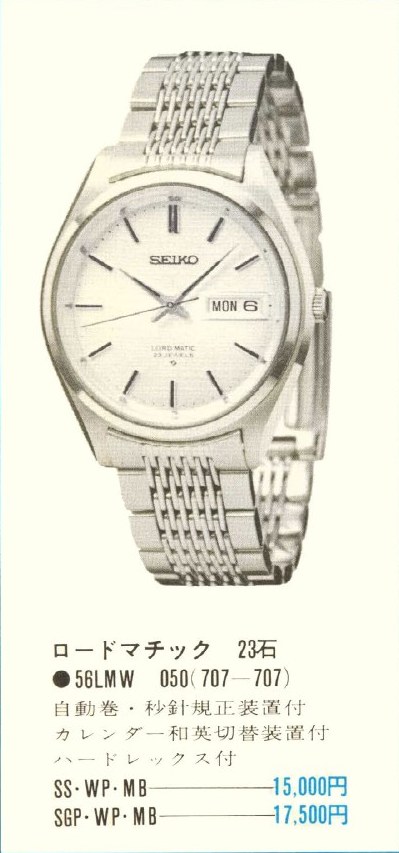

'69 1969 No. 1 JDM Catalog p. 7 · ¥15,000

56LMW 050

'69 1969 No. 2 JDM Catalog p. 10 · ¥15,000

56LMW 050

'71 1971 Seiko JDM Catalog No.1 p. 23 · ¥17,500

56LMW 050

'72 1972 Seiko JDM Catalog p. 42 · ¥17,500

56LMW 050

'72 1972 Seiko JDM Catalog p. 43 · ¥16,500

56LMW 050

'73 1973 Seiko JDM Catalog Vol.2 p. 33 · ¥17,500

56LMW 050

'74 1974 Seiko Catalog V1 p. 48

56LMW_050

'74 1974 Seiko Catalog V1 p. 49

56LMW_050

Clippings

56LMW050
