5606-714

Immersive

56LMW320

5606-714X

Explore

Specifications

Series

Collection

Style

320

Type

Automatic

Caliber

Design Code

714

Gender

Mens

Years

1971 - 1974

Dial Color

Silver

Case Material

N/A

Case Color

Silver

Crystal

N/A

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

N/A

Information is approximate. Field verification recommended.

Case № 2

5606-7140 5606-7141

Parts 13

Case & Crystal9

Backup Ring (Backup Ring (バックアップリング))	8999973
Bezel	83369389
Crown	[Ref:104] 45M30N
Crown	[Ref:72] 45M04N
Crystal	[Ref:113] 300V04GN
Gasket - Case Back	[Ref:109] FH2980B
Gasket - Case Back	[Ref:4] DJ0060B
Gasket - Glass	[Ref:304] EC2818B
Winding Stem	354560

Gears & Train1

Setting Lever (Setting Lever (オンドリ))

Dial & Hands1

Holding Ring for Dial

Band & Clasp1

Push Pin

General1

ring

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-129

5606-7140

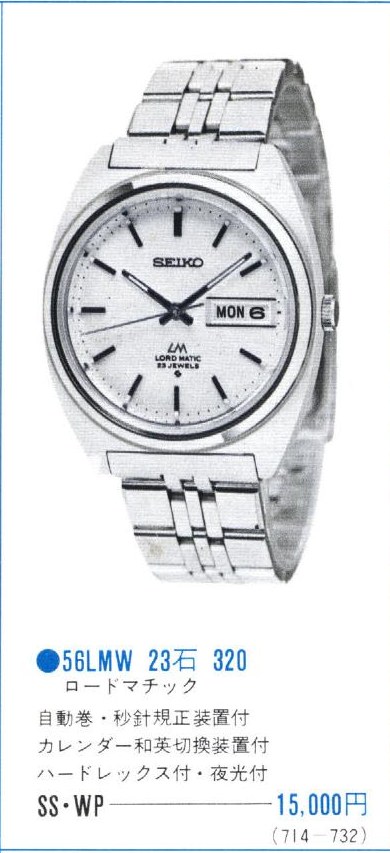

'71 1971 Seiko JDM Catalog No.1 p. 24 · ¥15,000

56LMW 320

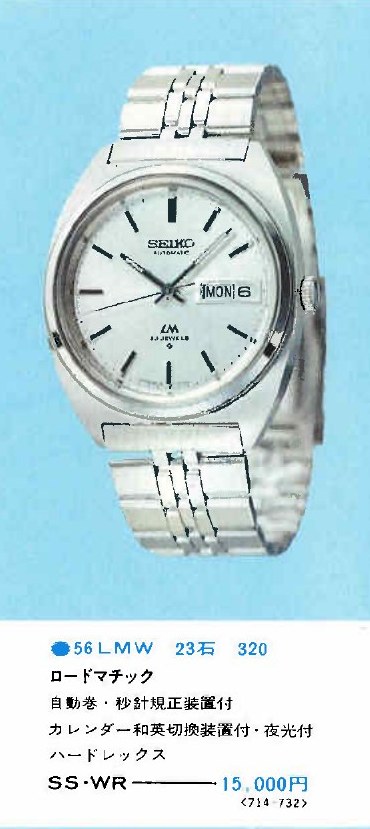

'72 1972 Seiko JDM Catalog p. 43 · ¥15,000

56LMW 320

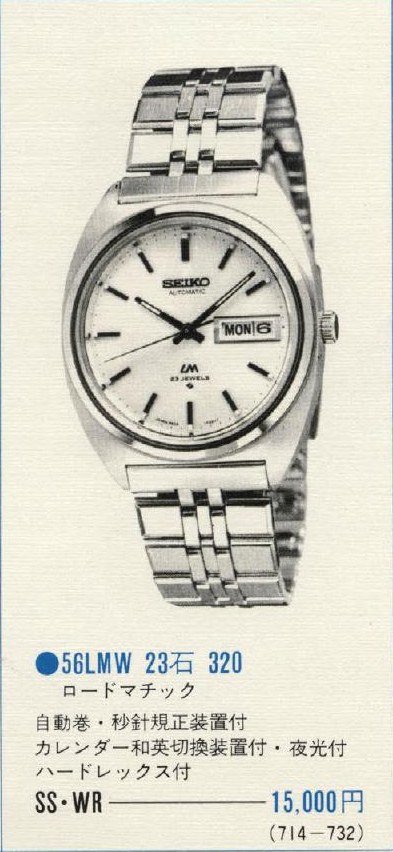

'74 1974 Seiko Catalog V1 p. 50

56LMW_320
