56LMW_330

Immersive

56LMW330

5606-714X

Explore

Specifications

Series

Collection

Style

330

Type

Automatic

Caliber

Design Code

714

Gender

Mens

Years

1971 - 1972

Dial Color

Champagne

Case Material

SS

Case Color

N/A

Crystal

Hardlex

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

¥17

Information is approximate. Field verification recommended.

Parts 13

Case & Crystal9

Backup Ring (Backup Ring (バックアップリング))	8999973
Bezel	83369389
Crown	[Ref:104] 45M30N
Crown	[Ref:72] 45M04N
Crystal	[Ref:113] 300V04GN
Gasket - Case Back	[Ref:109] FH2980B
Gasket - Case Back	[Ref:4] DJ0060B
Gasket - Glass	[Ref:304] EC2818B
Winding Stem	354560

Gears & Train1

Setting Lever (Setting Lever (オンドリ))

Dial & Hands1

Holding Ring for Dial

Band & Clasp1

Push Pin

General1

ring

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-129

5606-7140

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-130

5606-7141

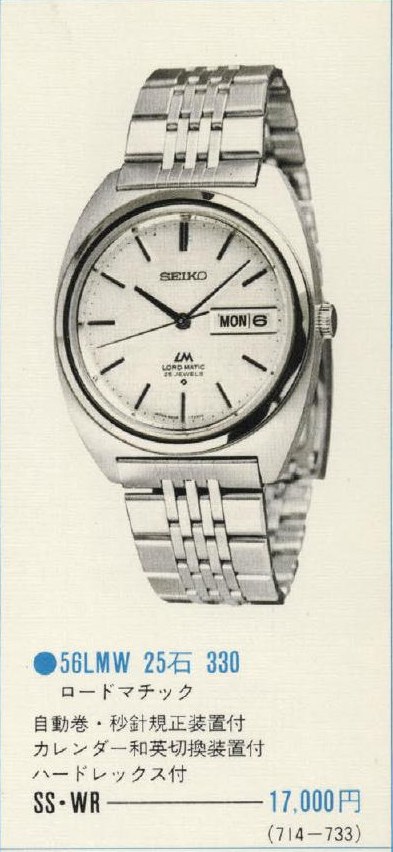

'71 1971 Seiko JDM Catalog No.1 p. 21 · ¥17,000

56LMW 330

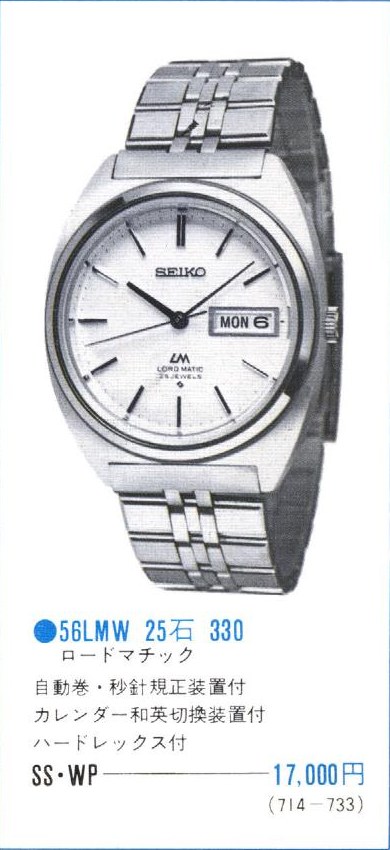

'72 1972 Seiko JDM Catalog p. 39

56LMW 330

Clippings

Casing Parts Spread
