56LMW_361
Immersive

56LMW361

5606-715X
Explore
Specifications
Series
56
Collection
LMW
Style
361
Type
Automatic
Caliber
5606
Design Code
715
Gender
Mens
Years
1972
Dial Color
N/A
Case Material
SS
Case Color
N/A
Crystal
Hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥15
Information is approximate. Field verification recommended.
Parts 14
Case & Crystal9
Bezel83338489
Bezel83338869
Crown[Ref:104] 45M30N
Crown[Ref:109] FH2980B
Crown[Ref:72] 45M04N
Crystal[Ref:190] 300V16GN
Gasket - Case Back[Ref:4] DJ0060B
Gasket - Glass[Ref:304] EC2818B
Winding Stem354560
Dial & Hands2
Holding Ring for Dial884560
Holding Ring for Dial884574
Gears & Train1
Setting Lever (Setting Lever (オンドリ))383561
Movement1
Movement Holding Body (Movement Holding Body (機械固定本))8133016
Band & Clasp1
Push PinA1801S
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-130
5606-7150, 5606-7151, 5606-7152

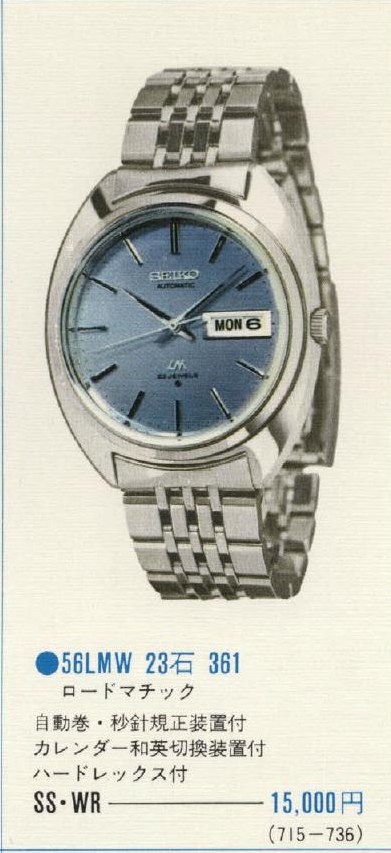

'72 1972 Seiko JDM Catalog p. 44
56LMW_361
