SEI型 5606-719

Specifications

Series

56

Collection

LMW

Style

420

Type

Automatic

Caliber

5606

Design Code

719

Gender

Mens

Years

1972 - 1974

Dial Color

Cream

Case Material

N/A

Case Color

Gold

Crystal

N/A

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

N/A

Information is approximate. Field verification recommended.

Case № 4

5606-7190 5606-7191 5606-7192 5606-7196

Parts 18

Case & Crystal11

Backup Ring (Backup Ring (バックアップリング))	8999973
Bezel	83338519
Bezel	8333886
Crown	[Ref:104] 45M30N
Crown	[Ref:109] FH2980B
Crown	[Ref:72] 45M04N
Crystal	[Ref:190] 300V16GN
Crystal	[Ref:277] 300V48GN
Gasket - Case Back	[Ref:258] OC2810B
Gasket - Glass	[Ref:304] EC2818B
Winding Stem	354560

Gears & Train2

Setting Lever (Setting Lever (オンドリ))	383560
Setting Lever (Setting Lever (オンドリ))	383561

Dial & Hands2

Holding Ring for Dial	884560
Holding Ring for Dial	884574

Movement1

Movement Holding Clamp (Movement Holding Clamp (機械固定八木))

8133016

Band & Clasp1

Push Pin

A1801S

General1

Snap Ring (Snap Ring (スナップリング))

8320993

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-130

5606-7190

'75 Seiko Casing Parts List pp. 79–80

5606-7190

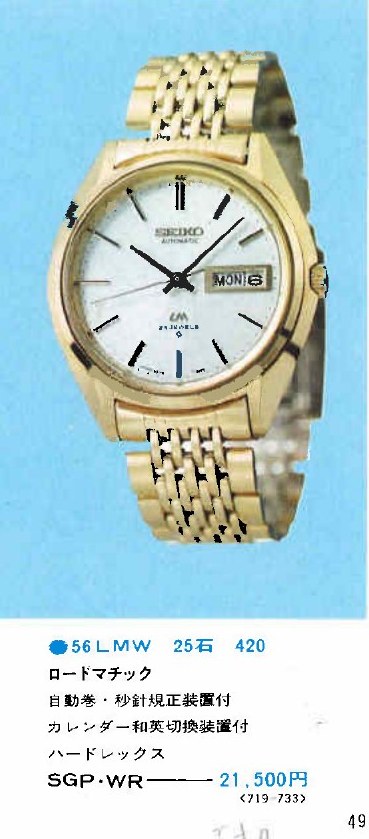

'72 1972 Seiko JDM Catalog p. 39 · ¥17,000

56LMW 420

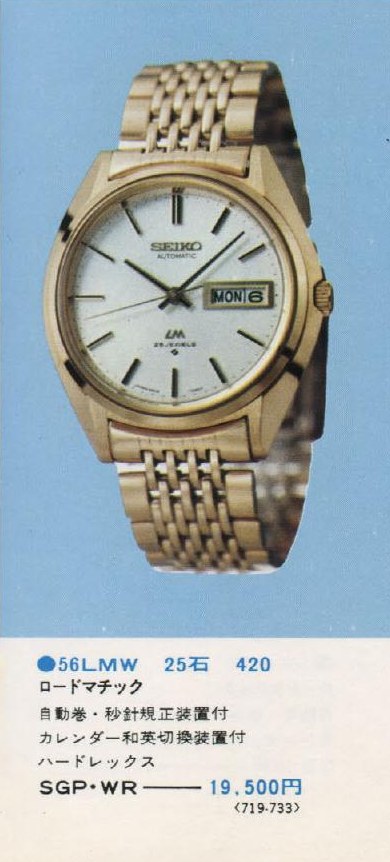

'73 1973 Seiko JDM Catalog Vol.2 p. 30 · ¥19,500

56LMW 420

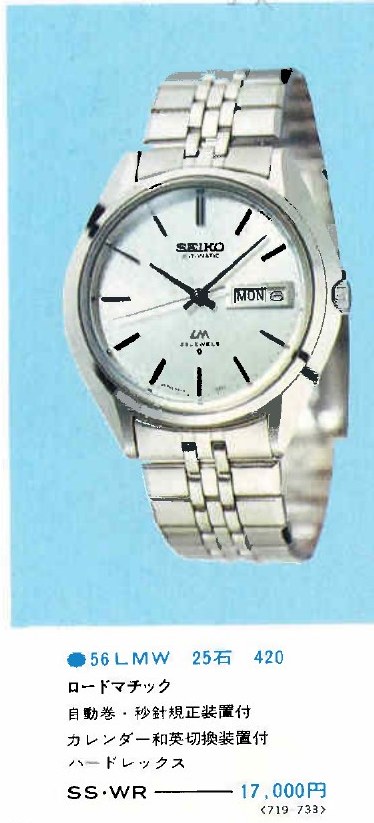

'73 1973 Seiko JDM Catalog Vol.2 p. 32 · ¥17,000

56LMW 420

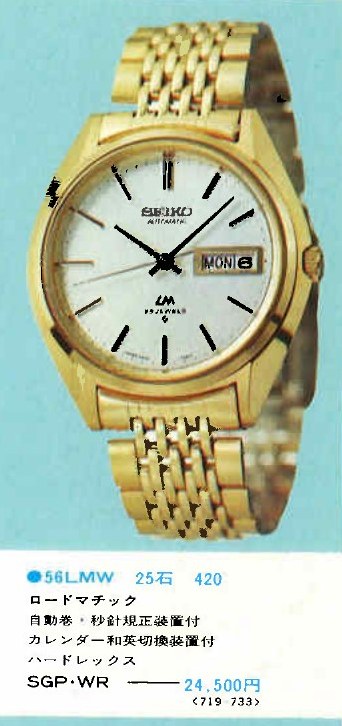

'74 1974 Seiko Catalog V2 p. 26 · ¥24,500

56LMW 420

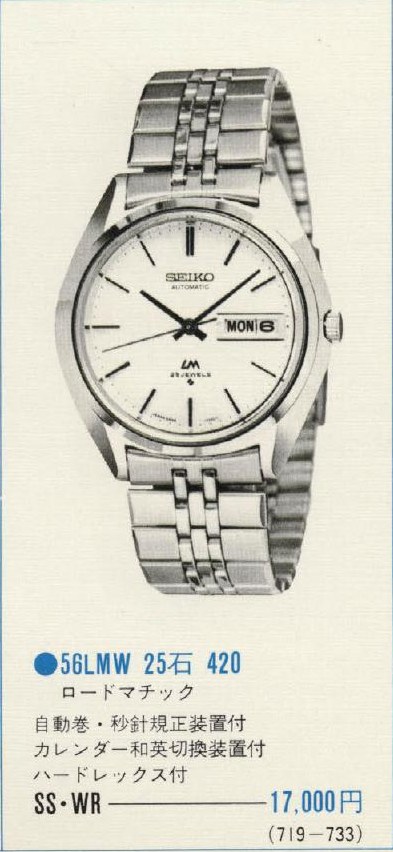

'72 1972 Seiko JDM Catalog p. 38

56LMW_420

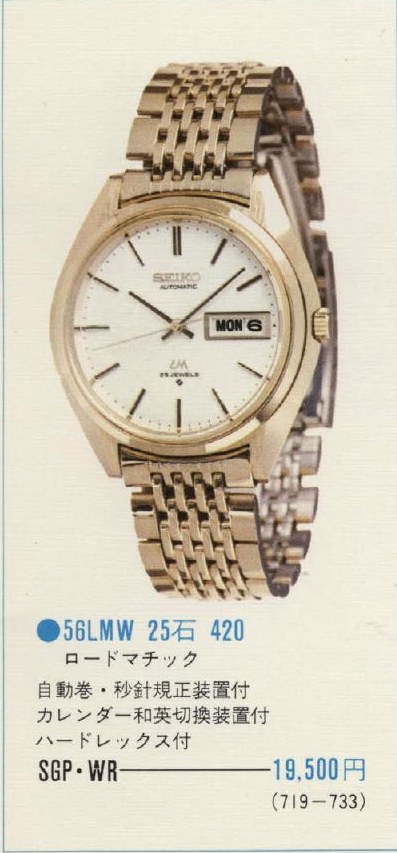

'74 1974 Seiko Catalog V1 p. 44

56LMW_420

'74 1974 Seiko Catalog V1 p. 47

56LMW_420

Clippings

56LMW420
