5606-726
Immersive

56LMW670

5606-726X
Explore
Specifications
Series
56
Collection
LMW
Style
670
Type
Automatic
Caliber
5606
Design Code
726
Gender
Mens
Years
1973 - 1974
Dial Color
Silver
Case Material
N/A
Case Color
Silver
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case № 1
5606-7260
Parts 8
Case & Crystal4
Bezel83338819
Crown[Ref:72] 45M04N
Crystal[Ref:190] 300V16GN
Winding Stem354560
Gears & Train1
Setting Lever (Setting Lever (オンドリ))383561
Movement1
Movement Holding Clamp (Movement Holding Clamp (機械固定八木))8133016
Dial & Hands1
Holding Ring for Dial884574
Band & Clasp1
Push PinA1801S
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-130
5606-7260

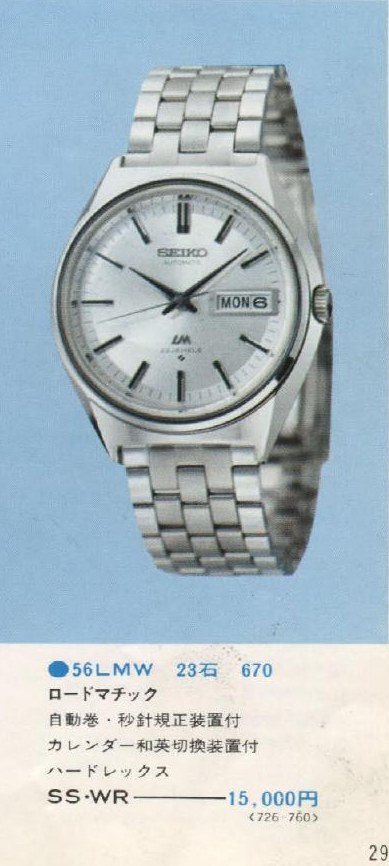

'73 1973 Seiko JDM Catalog Vol.2 p. 34 · ¥15,000
56LMW 670

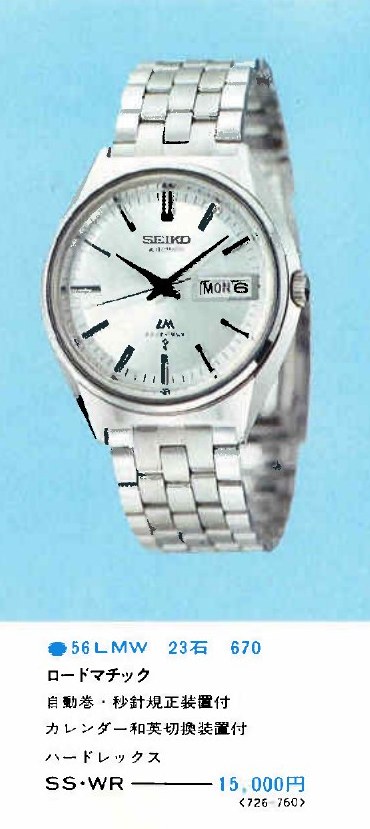

'74 1974 Seiko Catalog V1 p. 50
56LMW_670
