5606-728
Immersive

56LMW714

5606-728X
Explore
Specifications
Series
56
Collection
LMW
Style
714
Type
Automatic
Caliber
5606
Design Code
728
Gender
Mens
Years
1973 - 1974
Dial Color
Blue
Case Material
N/A
Case Color
Silver
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case № 2
5606-7280 5606-7281
Parts 12
Case & Crystal8
Bezel83338299
Crown[Ref:104] 45M30N
Crown[Ref:72] 45M02N
Crystal[Ref:325] 300V98GC
Gasket - Case Back[Ref:109] FH2980B
Gasket - Crown StemDJ0060B
Gasket - Glass[Ref:304] EC2818B
Winding Stem354560
Gears & Train1
Setting Lever (Setting Lever (オンドリ))383561
Movement1
Movement Holding Body (Movement Holding Body (機械固定杯本))8133016
Dial & Hands1
Holding Ring for Dial884574
Band & Clasp1
Push PinA1801S
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-131
5606-7280

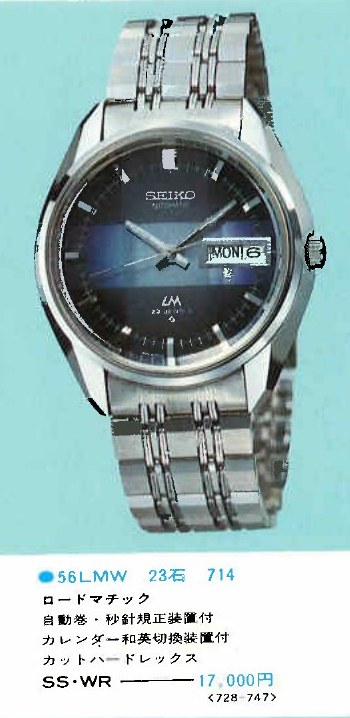

'73 1973 Seiko JDM Catalog Vol.2 p. 33 · ¥17,000
56LMW 714

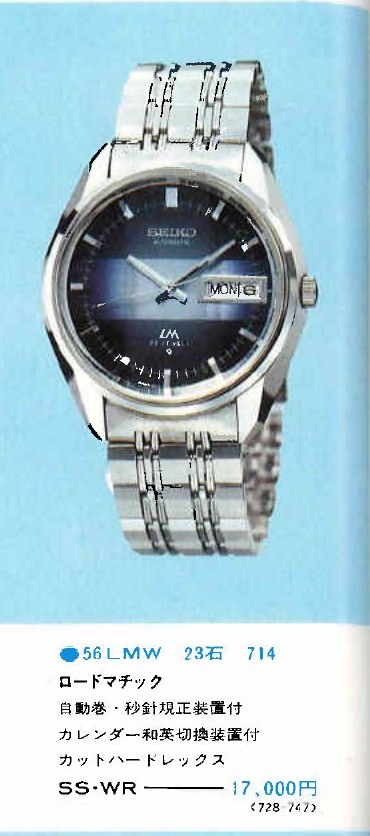

'74 1974 Seiko Catalog V2 p. 28
56LMW 714

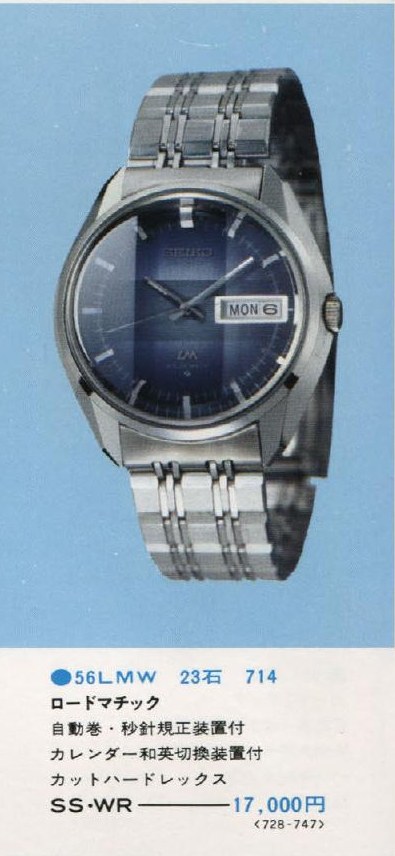

'74 1974 Seiko Catalog V1 p. 49
56LMW_714
Clippings
Casing Parts Spread
