61-5A060

6106-742X
Explore
Specifications
Series
61
Collection
-5A
Style
060
Type
Automatic
Caliber
6106
Design Code
742
Gender
Mens
Years
1971 - 1972
Dial Color
Silver
Case Material
SS
Case Color
N/A
Crystal
Hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥12
Information is approximate. Field verification recommended.
Parts 10
Case & Crystal6
Crown[Ref:53] 40M16N
Crystal[Ref:65] 320W10GN
Gasket - Case Back[Ref:109] FH2980B
Gasket - Crown Stem[Ref:4] DJ0060B
Gasket - Glass[Ref:308] EC3160B
Winding Stem354615
Movement1
Movement Holding Clamp (Movement Holding Clamp (機械固定木))8133016
Dial & Hands1
Holding Ring for Dial884611
Band & Clasp1
Push PinA1901S
General1
83339089
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-143
6106-7420

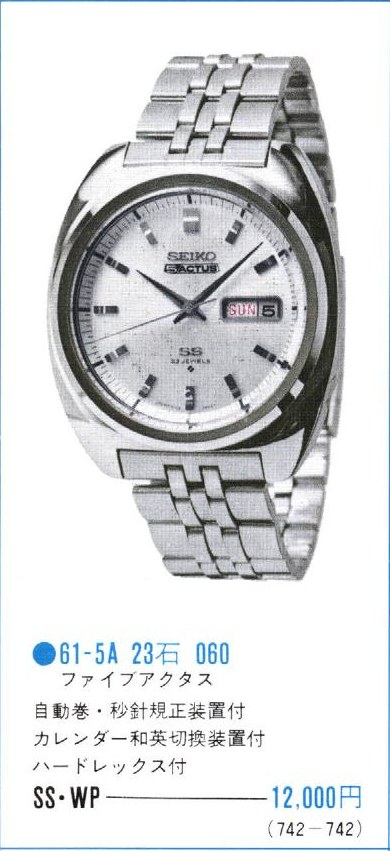

'71 1971 Seiko JDM Catalog No.1 p. 34
61-5A_060

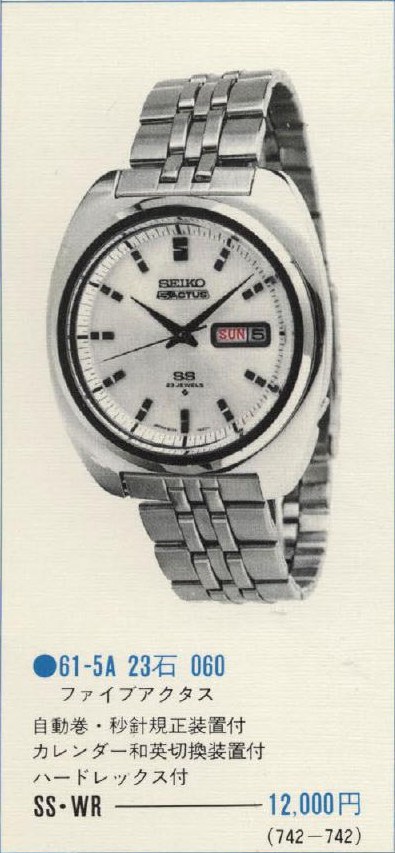

'72 1972 Seiko JDM Catalog p. 56
61-5A_060
