70-5A_030

Immersive

70-5A030

7019-801X

Explore

Specifications

Series

Collection

Style

030

Type

Automatic

Caliber

Design Code

801

Gender

Mens

Years

1971 - 1974

Dial Color

Champagne

Case Material

SGP

Case Color

N/A

Crystal

N/A

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

¥13

Information is approximate. Field verification recommended.

Parts 14

Case & Crystal10

Bezel	8336046
Bezel	83360469
Crown	[Ref:65] 40M23N
Crown	[Ref:65] 40M23NS1
Crystal	[Ref:155] 310T49ANSO
Gasket - Case Back	[Ref:235] 082930B
Gasket - Case Back	[Ref:235] 082930B04
Gasket - Crown Stem	[Ref:29] EJ0060B
Gasket - Crown Stem	[Ref:29] EJ0060B01
Winding Stem	354022

Dial & Hands3

Holding Ring for Dial	884008
Hour Hand	13B31FS
Second Hand	13SB17NS

Band & Clasp1

Push Pin

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-169

7019-8010, 7019-8010, 7019-8010

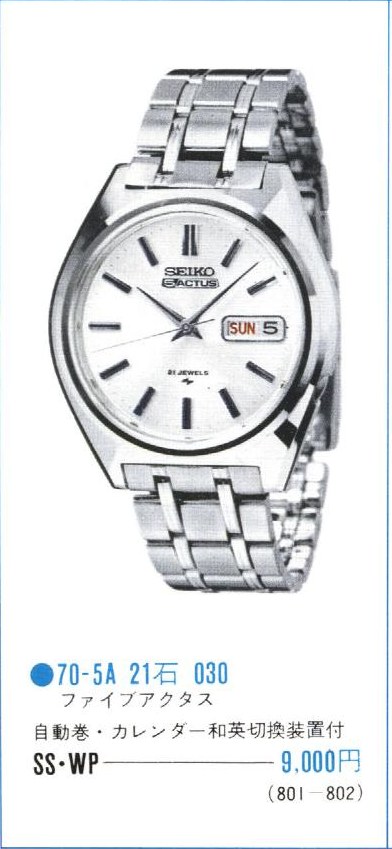

'71 1971 Seiko JDM Catalog No.1 p. 36

70-5A_030

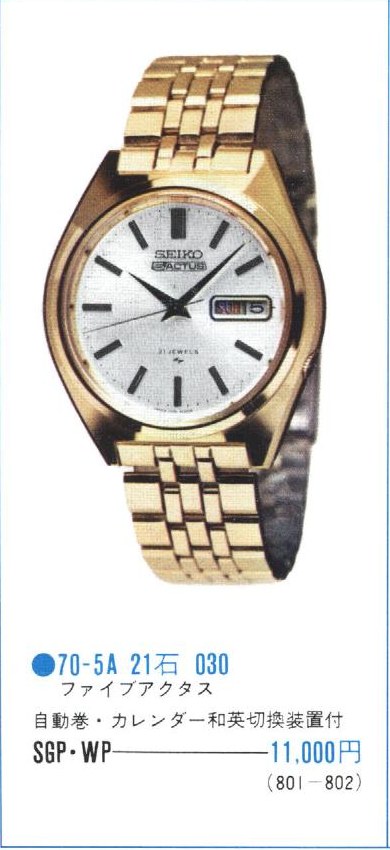

'71 1971 Seiko JDM Catalog No.1 p. 38

70-5A_030

'72 1972 Seiko JDM Catalog p. 59

70-5A_030

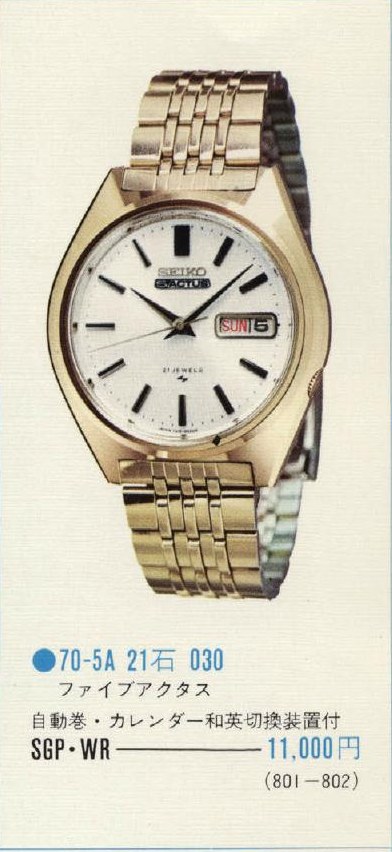

'73 1973 Seiko JDM Catalog Vol.2 p. 48

70-5A_030

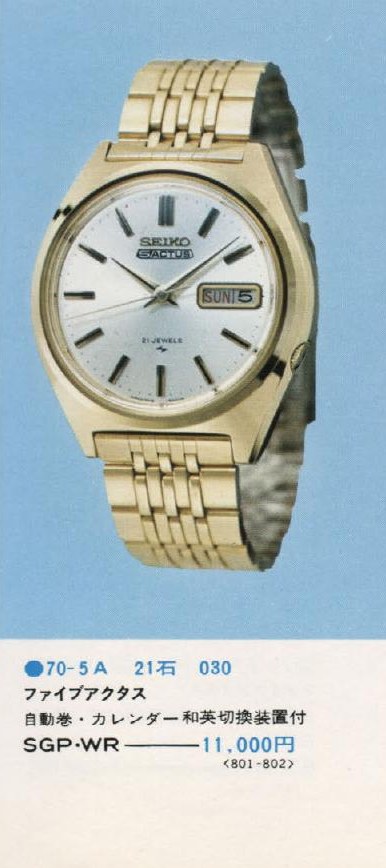

'74 1974 Seiko Catalog V2 p. 33

70-5A_030

Clippings

Casing Parts Spread
