SEI型 7015-701

Specifications

Series

70

Collection

SPS

Style

042

Type

Automatic

Caliber

7015

Design Code

701

Gender

Mens

Years

1973 - 1974

Dial Color

Grey

Case Material

N/A

Case Color

Silver

Crystal

N/A

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

N/A

Information is approximate. Field verification recommended.

Case № 1

7015-7010

Parts 17

Case & Crystal9

Bezel	8602023
Bezel	8998146
Crown	[Ref:78] 50M17N
Crystal	[Ref:134] 330W16GN
Gasket - Case Back	[Ref:309] EC3260B
Gasket - Crown Stem	[Ref:121] FH3180B
Gasket - Glass	[Ref:23] EJ0165B
Pusher Assembly (Pusher Assembly (ボタン式))	8060041
Winding Stem	357002

Dial & Hands1

Holding Ring for Dial

884028

Gears & Train1

Driving Wheel (Driving Wheel (駆動車))

999002

Band & Clasp1

Push Pin

A1901S

General5

ボタン	8320010
ボテンパッキン	26-0201308
ボテン体	8061065
日本車	8140091
舉動車	998002

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-163

7015-7010

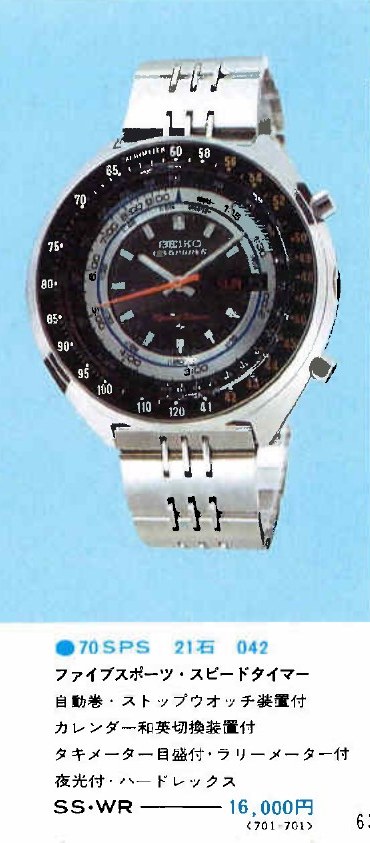

'73 1973 Seiko JDM Catalog Vol.2 p. 38 · ¥16,000

70SPS 042

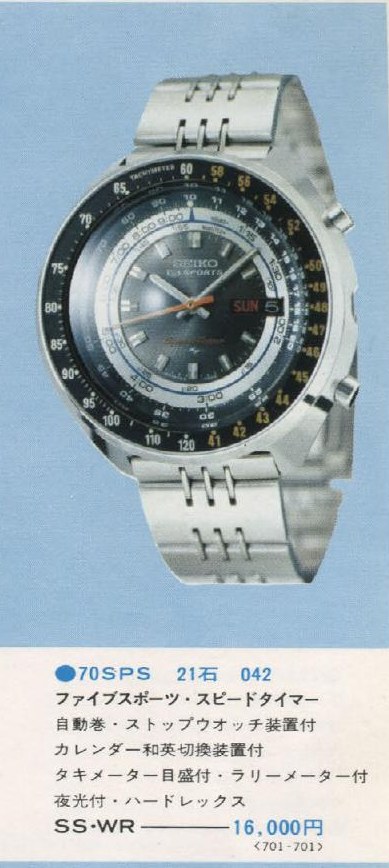

'74 1974 Seiko Catalog V2 p. 29 · ¥16,000

70SPS 042

Clippings

70SPS042
