FCS_050 (6306-802)
Immersive

FCS050

6306-802X
Explore
Specifications
Series
63
Collection
FCS
Style
050
Type
Automatic
Caliber
6306
Design Code
802
Gender
Mens
Years
1977 - 1978
Dial Color
N/A
Case Material
SS
Case Color
N/A
Crystal
Hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥15
Information is approximate. Field verification recommended.
Parts 18
Case & Crystal10
Bezel83336671
Bezel83336679
Crown[Ref:104] 45M30NG
Crown[Ref:104] 45M30NS
Crystal[Ref:537] 310W36GN
Gasket - Case Back[Ref:109] FH2980B
Gasket - GlassDJ0060B
Gasket - Glass[Ref:455] DB2935B
Gasket Retaining Ring (Gasket Retaining Ring (パッキン受リング))86099632
Winding Stem354601
Dial & Hands6
Holding Ring for Dial884931
Hour Hand12BE6CA
Hour Hand12BE6CK
Hour Hand12BE6CN
Second Hand13SB11NS
Second Hand13SB1ING
Band & Clasp1
Push PinA1801S
General1
パッキン慢リング86099631
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-156
6306-8020, 6306-8020, 6306-8020

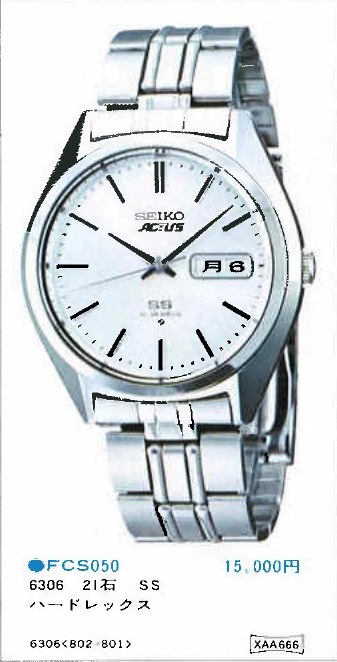

'77 1977 Seiko Catalog V2 p. 31
FCS_050

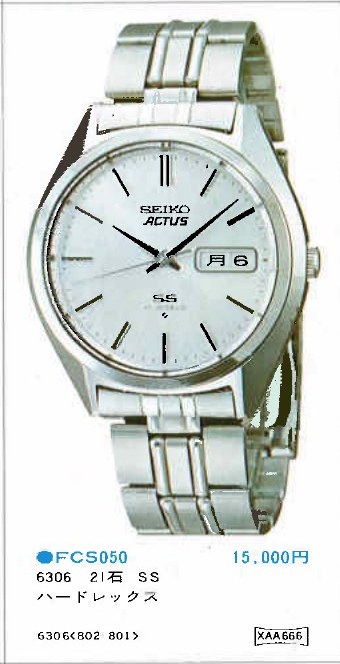

'77 1977 Seiko Catalog V1 p. 35
FCS_050

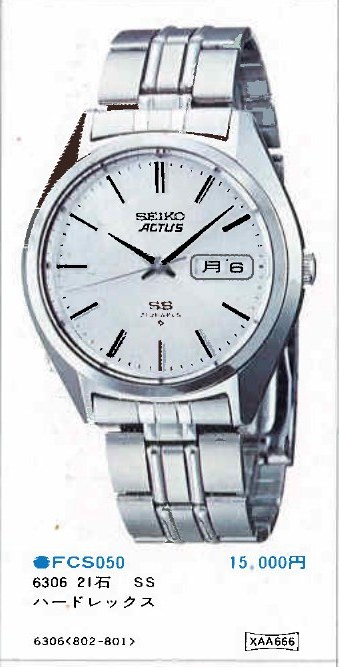

'78 1978 Seiko Catalog V1 p. 37
FCS_050
