FCS_098 (6306-806)

Immersive

FCS098

6306-806X

Explore

Specifications

Series

Collection

Style

098

Type

Automatic

Caliber

Design Code

806

Gender

Mens

Years

1977 - 1979

Dial Color

N/A

Case Material

SS

Case Color

N/A

Crystal

Hardlex

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

¥20

Information is approximate. Field verification recommended.

Parts 13

Case & Crystal8

Bezel	83336839
Crown	[Ref:141] 55E04NS
Crystal	[Ref:516] 310W40GA
Gasket - Case Back	[Ref:158] FH2980B0A
Gasket - Crown Stem	[Ref:168] 0K0180B0A
Gasket - Glass	[Ref:442] DJ3090B
Glass Fixing Ring (Glass Fixing Ring (ガラス固定リング))	86109731
Waterproof Ring (Waterproof Ring (防水リング))	81330161

Dial & Hands3

Dial Ring	83071496
Hour Hand	12BF6AK
Second Hand	12SB09EY

Band & Clasp1

Push Pin

General1

パッキン押エリング

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-157

6306-8060, 6306-806A

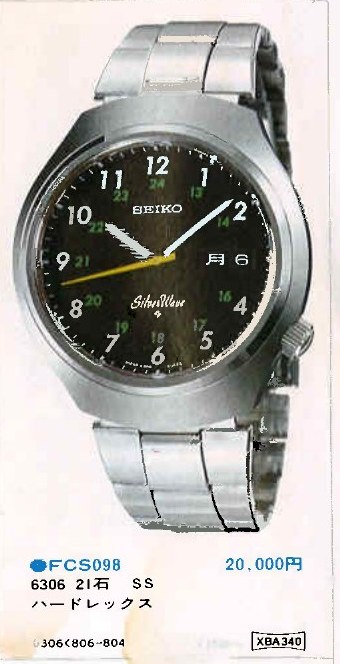

'77 1977 Seiko Catalog V2 p. 37

FCS_098

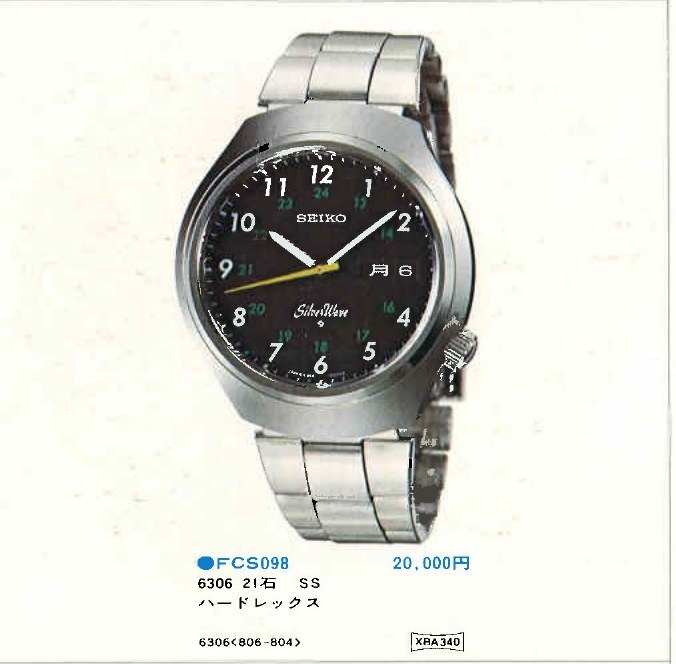

'78 1978 Seiko Catalog V1 p. 43

FCS_098

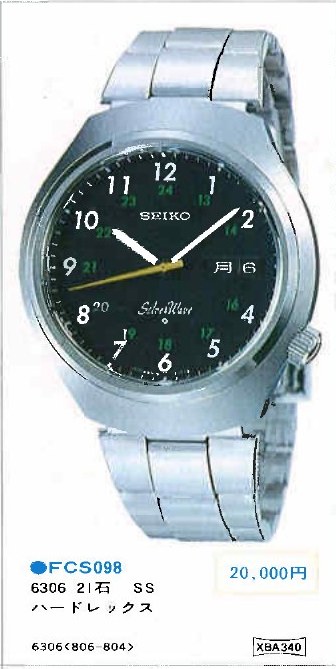

'78 1978 Seiko Catalog V2 p. 53

FCS_098

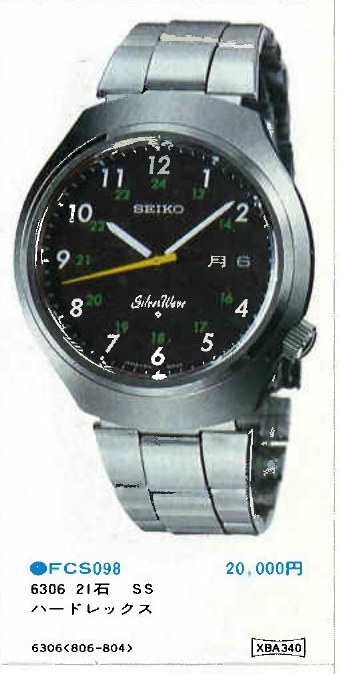

'79 1979 Seiko Catalog V1 p. 62

FCS_098

Clippings

Casing Parts Spread
