LBX_171

Immersive

LBX171

5216-802X

Explore

Specifications

Series

Collection

Style

171

Type

Automatic

Caliber

Design Code

802

Gender

Mens

Years

1975 - 1976

Dial Color

N/A

Case Material

SS

Case Color

N/A

Crystal

Hardlex

Bezel

N/A

Depth Rating

N/A

Case Width

N/A

Thickness

N/A

Lug Width

N/A

Price (JPY)

¥23

Information is approximate. Field verification recommended.

Parts 11

Case & Crystal7

Bezel	83332569
Crown	[Ref:107] 50M33N
Crystal	[Ref:438] 300W76GN
Gasket - Case Back	[Ref:93] DJ2990B
Glass Fixing Ring (Glass Fixing Ring (ガラス固定リング))	8610989
Molded Plastic Gasket (Molded Plastic Gasket (型プラスチックパッキン))	8999785
Winding Stem	354026

Dial & Hands1

Holding Ring for Dial

Band & Clasp1

Push Pin

General2

Inner Frame Spring (Inner Frame Spring (中枠押エバネ))	81331219
Yoke (Yoke (オシドリ))	383013

Sources

'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-124

5216-8020

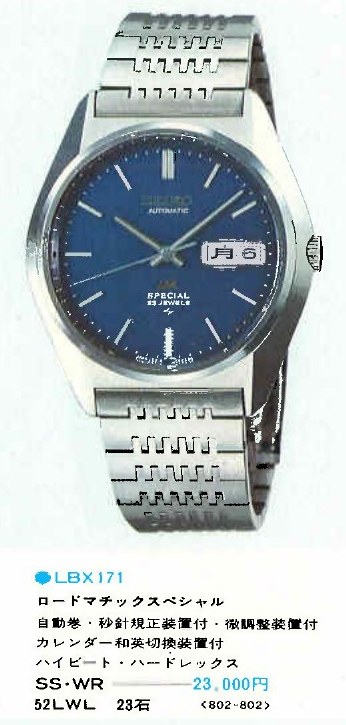

'75 1975 Seiko Catalog V2 p. 54

LBX_171

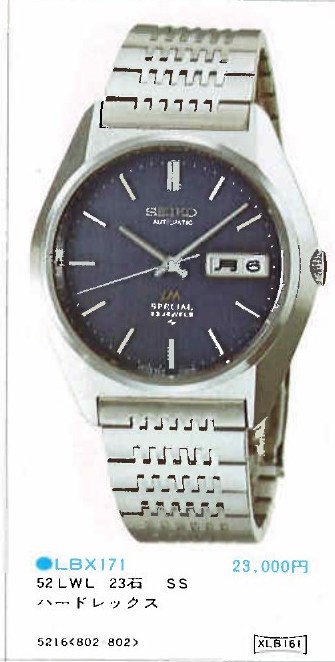

'76 1976 Seiko Catalog V1 p. 34

LBX_171
