LBX_193 (5216-804)
Immersive

LBX193

5216-804X
Explore
Specifications
Series
52
Collection
LBX
Style
193
Type
Automatic
Caliber
5216
Design Code
804
Gender
Mens
Years
1976 - 1977
Dial Color
N/A
Case Material
SS
Case Color
N/A
Crystal
Hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥22
Information is approximate. Field verification recommended.
Parts 10
Case & Crystal6
Crown[Ref:140] 55E03N
Crystal[Ref:515] 300G03GA
Gasket - Case Back[Ref:429] EK011580A
Gasket - Case Back[Ref:430] FH3070B
Gasket - Crown Stem[Ref:431] EZ2980B
Winding Stem354026
Dial & Hands1
Holding Ring for Dial884041
Band & Clasp1
Push PinA1901S
General2
Inner Frame Spring (Inner Frame Spring (中枠押エバネ))81331219
Yoke (Yoke (オシドリ))383013
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-124
5216-8040

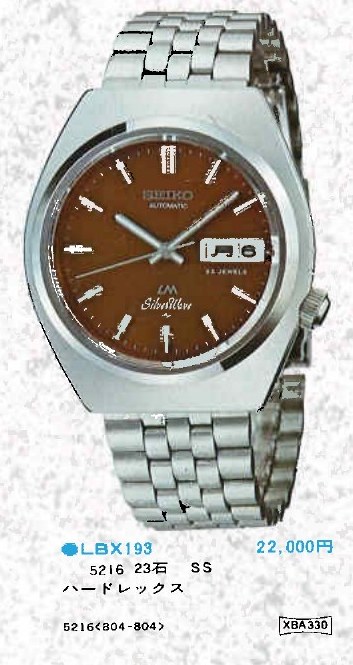

'76 1976 Seiko Catalog V1 p. 45
LBX_193

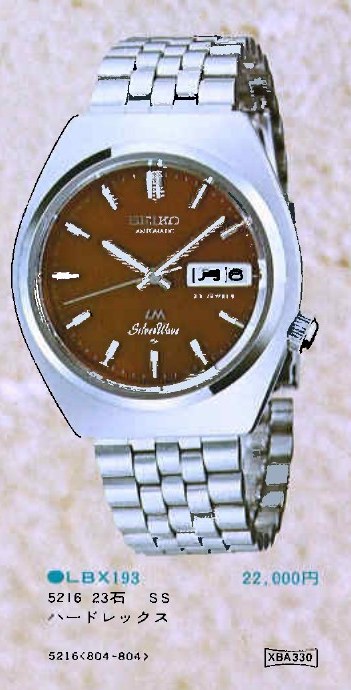

'77 1977 Seiko Catalog V1 p. 41
LBX_193
Clippings
Casing Parts Spread
