LBX_800
Immersive

LBX800

52LWL800
5216-605X
Explore
Specifications
Series
52
Collection
LBX
Style
800
Type
Automatic
Caliber
5216
Design Code
605
Gender
Mens
Years
1975
Dial Color
N/A
Case Material
SGP
Case Color
N/A
Crystal
Hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥500
Information is approximate. Field verification recommended.
Parts 10
Case & Crystal6
Crown[Ref:90] 45M15N
Crystal[Ref:333] 285V21GN
Gasket - Case Back[Ref:126] FH2880B
Gasket - Crown Stem[Ref:29] EJ0060B
Gasket - Glass[Ref:337] EZ2718B
Winding Stem354026
Dial & Hands1
Holding Ring for Dial884037
Band & Clasp1
Push PinA1801S
General2
Inner Frame Spring (Inner Frame Spring (中枠押エバネ))81330329
Yoke (Yoke (オシドリ))383013
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-123
5216-6050

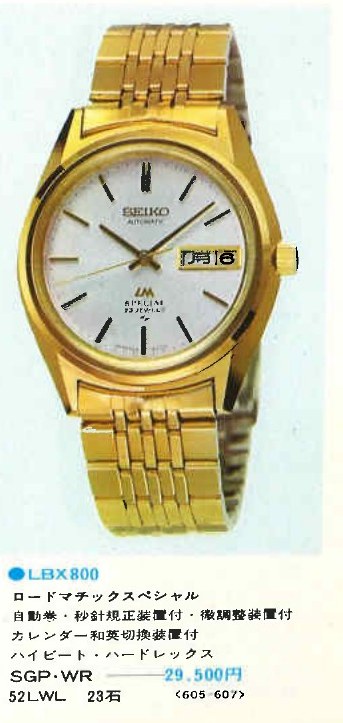

'75 1975 Seiko Catalog V2 p. 52
