Immersive
56KWM
030
5626-704
X
Explore
Specifications
Series
56
Collection
KWM
Style
030
Type
Automatic
Caliber
5626
Design Code
704
Gender
Mens
Years
1971 - 1974
Dial Color
Cream
Case Material
N/A
Case Color
Silver
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case №
2
5626-7040
5626-7041
Parts
15
Case & Crystal
6
Bezel
83338509
Bezel
8333895
Crystal
[Ref:113] 300V04GN
Crystal
[Ref:190] 300V16GN
Gasket - Case Back
[Ref:109] FH2980B
Gasket - Glass
[Ref:304] EC2818B
Dial & Hands
2
Holding Ring for Dial
884560
Holding Ring for Dial
884574
Screws & Jewels
1
screw
8999965
Band & Clasp
1
Push Pin
A1801S
General
5
part
383560
part
383561
ring
8320993
ring
8999973
spring
8133016
Sources

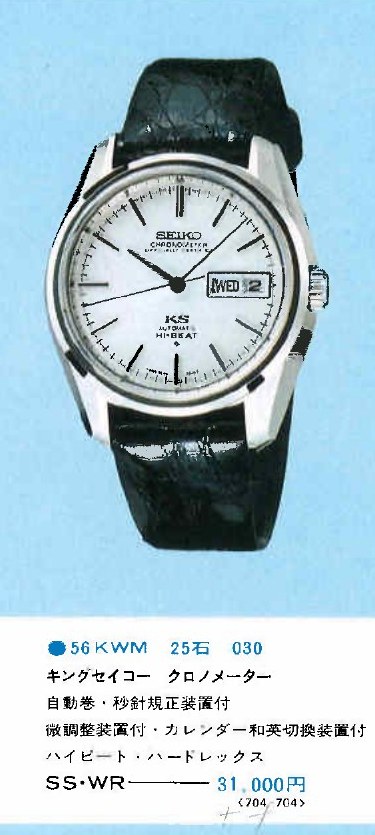

'77 JDM Seiko Casing Parts List
1977-jdm-casing-parts-136
5626-7040

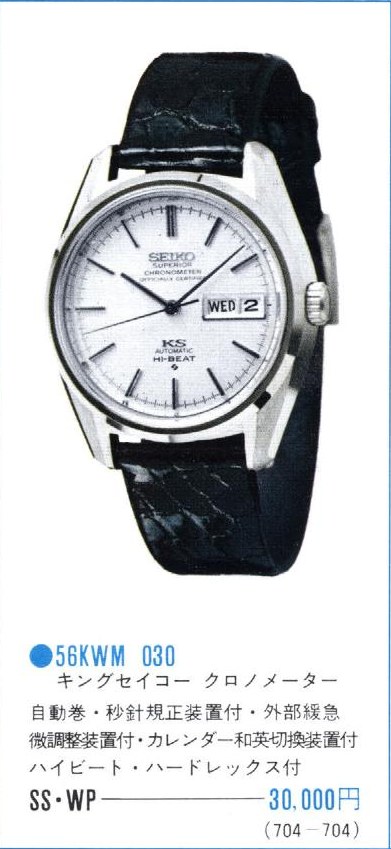

'71 1971 Seiko JDM Catalog No.1
p. 8 · ¥30,000
56KWM 030

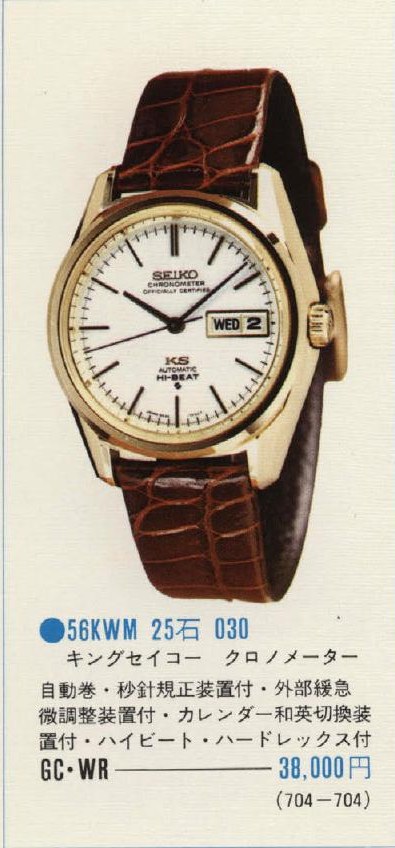

'72 1972 Seiko JDM Catalog
p. 17 · ¥38,000
56KWM 030

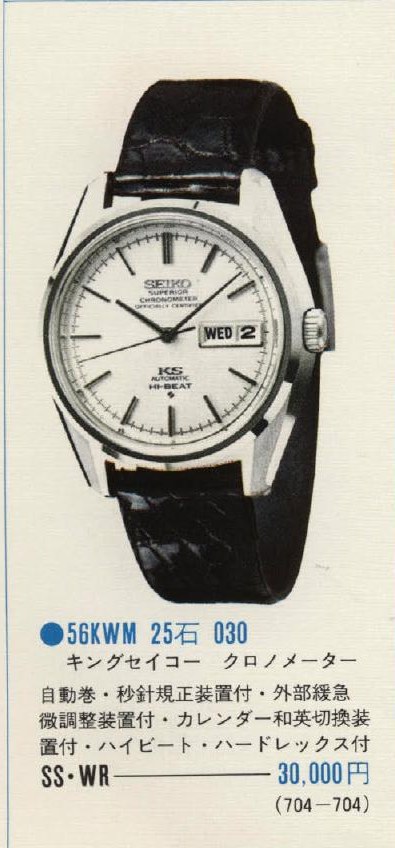

'74 1974 Seiko Catalog V2
p. 19 · ¥33,000
56KWM 030

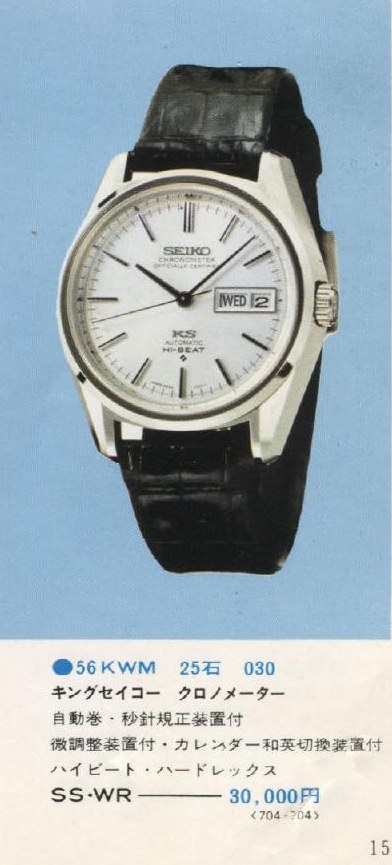

'73 1973 Seiko JDM Catalog Vol.2
p. 20
56KWM_030

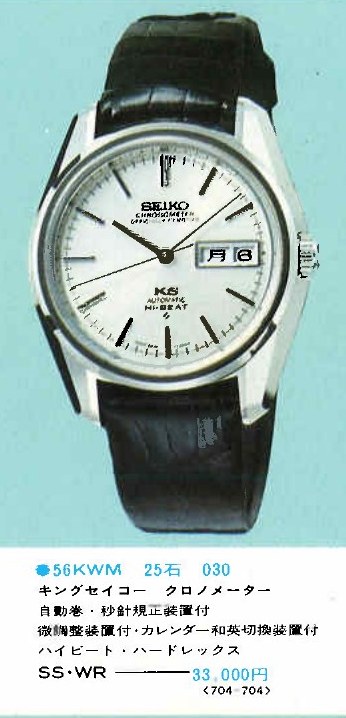

'74 1974 Seiko Catalog V1
p. 31
56KWM_030
