5626-704
Immersive

56KWM035

5626-704X
Explore
Specifications
Series
56
Collection
KWM
Style
035
Type
Automatic
Caliber
5626
Design Code
704
Gender
Mens
Years
1971 - 1974
Dial Color
Blue
Case Material
N/A
Case Color
Silver
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case № 2
5626-7040 5626-7041
Parts 15
Case & Crystal6
Bezel83338509
Bezel8333895
Crystal[Ref:113] 300V04GN
Crystal[Ref:190] 300V16GN
Gasket - Case Back[Ref:109] FH2980B
Gasket - Glass[Ref:304] EC2818B
Dial & Hands2
Holding Ring for Dial884560
Holding Ring for Dial884574
Screws & Jewels1
screw8999965
Band & Clasp1
Push PinA1801S
General5
part383560
part383561
ring8320993
ring8999973
spring8133016
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-136
5626-7040

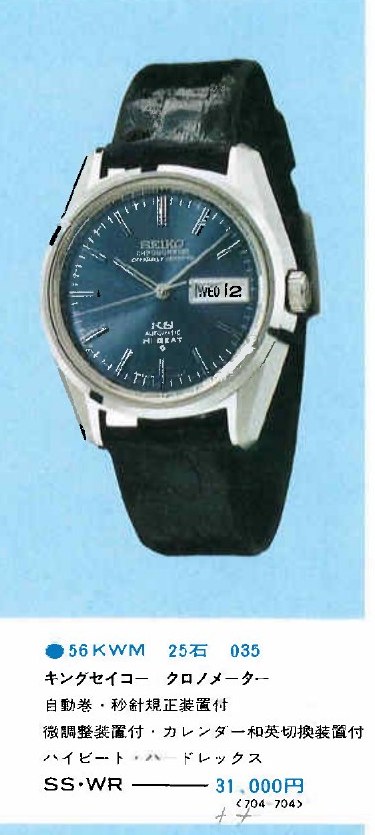

'71 1971 Seiko JDM Catalog No.1 p. 8 · ¥30,000
56KWM 035

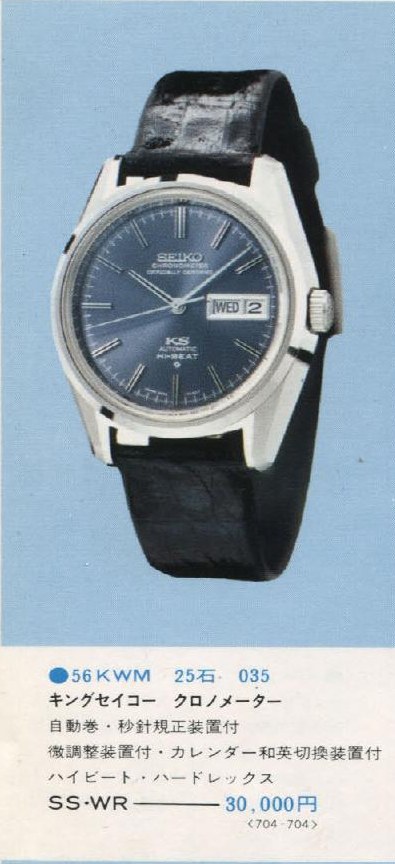

'72 1972 Seiko JDM Catalog p. 17 · ¥30,000
56KWM 035

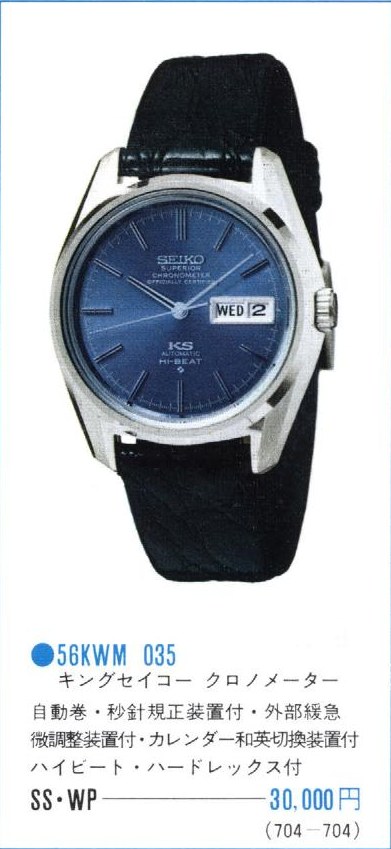

'74 1974 Seiko Catalog V2 p. 19 · ¥33,000
56KWM 035

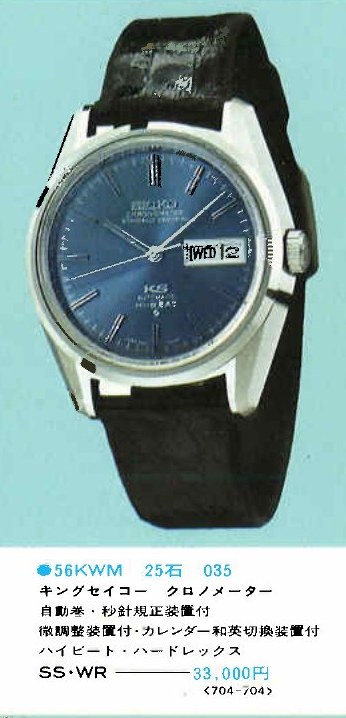

'73 1973 Seiko JDM Catalog Vol.2 p. 21
56KWM_035

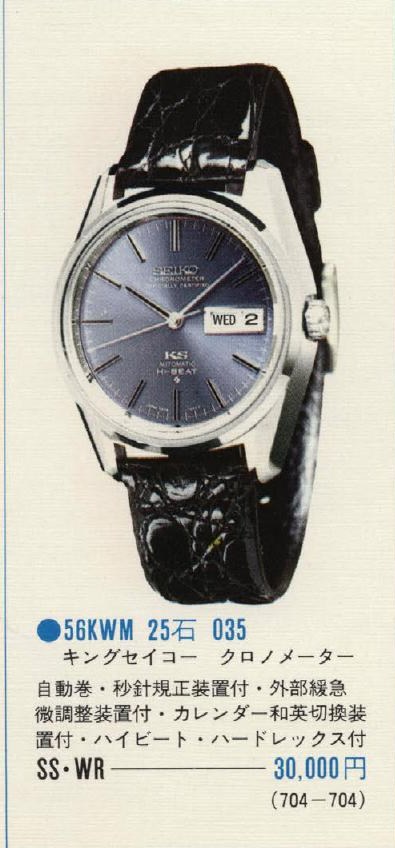

'74 1974 Seiko Catalog V1 p. 31
56KWM_035
