56LMC_080
Immersive

56LMC080

5605-705X
Explore
Specifications
Series
56
Collection
LMC
Style
080
Type
Automatic
Caliber
5605
Design Code
705
Gender
Mens
Years
1972
Dial Color
Champagne
Case Material
SS
Case Color
N/A
Crystal
Hardlex
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
¥16
Information is approximate. Field verification recommended.
Parts 19
Case & Crystal11
Bezel83338519
Bezel83338869
Crown[Ref:72] 45M04N
Crystal[Ref:190] 300V16GN
Crystal[Ref:277] 300V48GN
Gasket - Case Back[Ref:109] FH2980B
Gasket - Case Back[Ref:259] 0C2980B
Gasket - Crown Stem[Ref:4] DJ0060B
Gasket - Glass[Ref:258] 0C2810B
Gasket - Glass[Ref:304] EC2818B
Winding Stem354560
Dial & Hands2
Holding Ring for Dial884560
Holding Ring for Dial884574
Movement1
Movement Holder Screw (Movement Holder Screw (機械固定ネ))
Band & Clasp1
Push PinA1801S
General4
ring8320993
ring8999973
Yoke (Yoke (オシドリ))383560
Yoke (Yoke (オシドリ))383561
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-127
5605-7050, 5605-7051

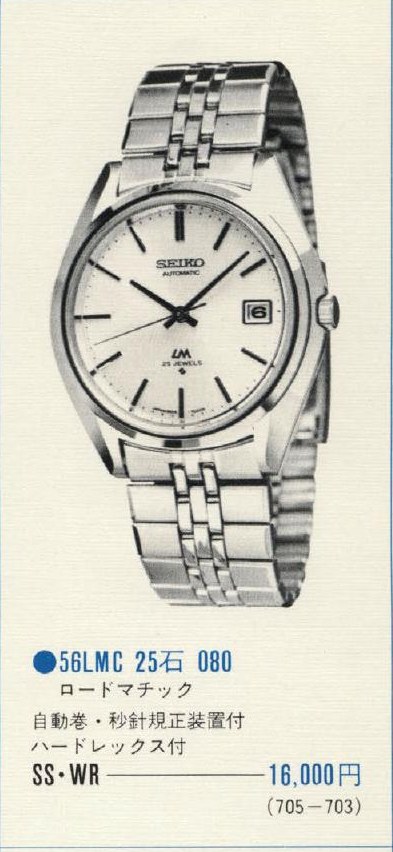

'72 1972 Seiko JDM Catalog p. 47
56LMC 080
