Prev 56LMC080
Next 56LMW012
›
5606-700
Immersive

56LMW010

5606-700X
Explore
Specifications
Series
56
Collection
LMW
Style
010
Type
Automatic
Caliber
5606
Design Code
700
Gender
Mens
Years
1968 - 1974
Dial Color
Cream
Case Material
N/A
Case Color
Gold
Crystal
N/A
Bezel
N/A
Depth Rating
N/A
Case Width
N/A
Thickness
N/A
Lug Width
N/A
Price (JPY)
N/A
Information is approximate. Field verification recommended.
Case № 3
5606-7000 5606-7006 5606-7009
Parts 10
Case & Crystal6
Bezel8336943
Crown[Ref:72] 45M04N
Crystal[Ref:87] 300T12AN
Gasket - Case Back[Ref:118] FA2920B
Gasket - Glass[Ref:229] 0B2810B
Winding Stem354560
Dial & Hands1
Holding Ring for Dial884560
Band & Clasp1
Push PinA1901S
General2
Snap Ring (Snap Ring (スナップリング))8320993
Yoke (Yoke (オシドリ))383560
Sources
'77 JDM Seiko Casing Parts List 1977-jdm-casing-parts-128
5606-7000
'75 Seiko Casing Parts List pp. 77–78
5606-7000

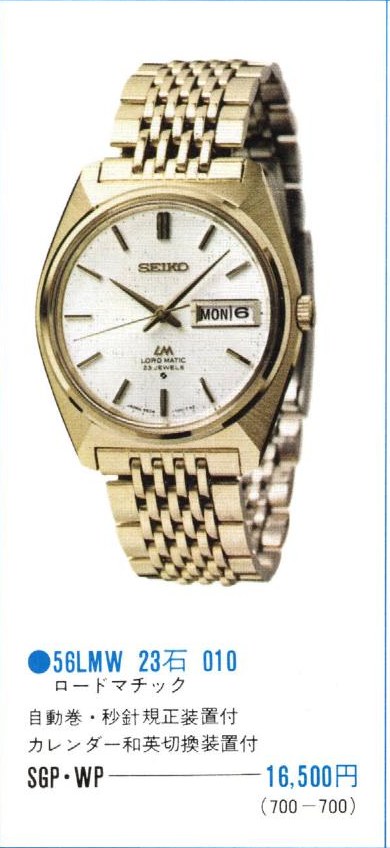

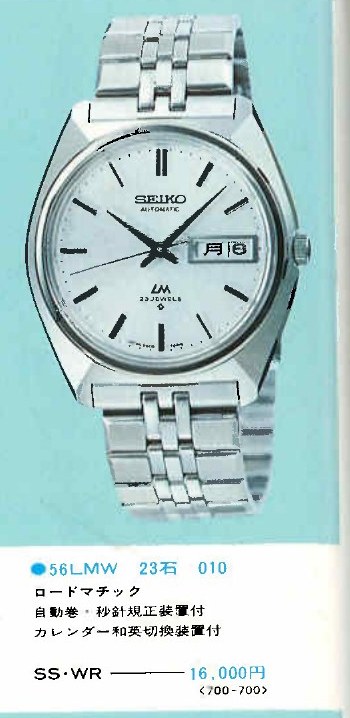

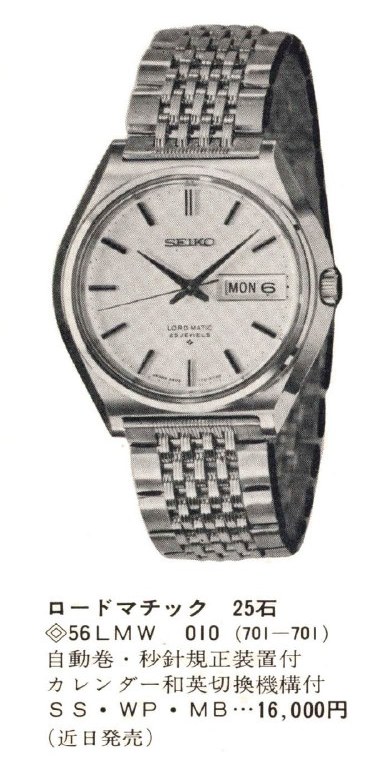

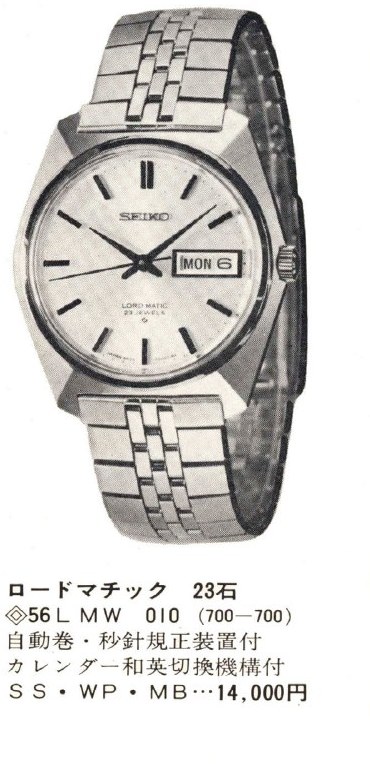

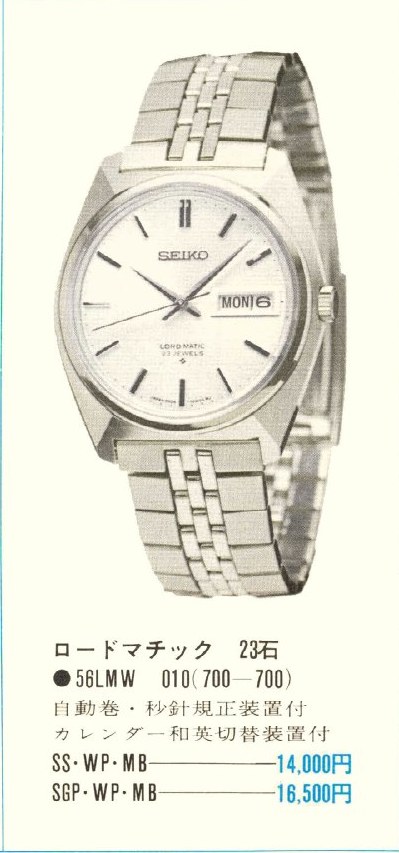

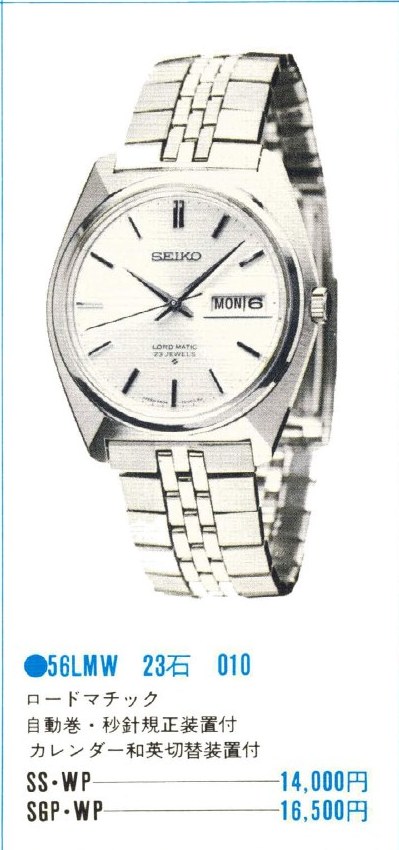

'69 1969 No. 1 JDM Catalog p. 6 · ¥16,000
56LMW 010

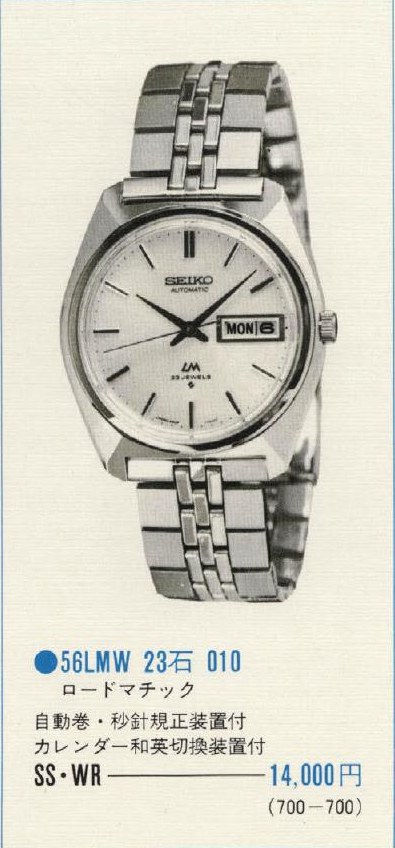

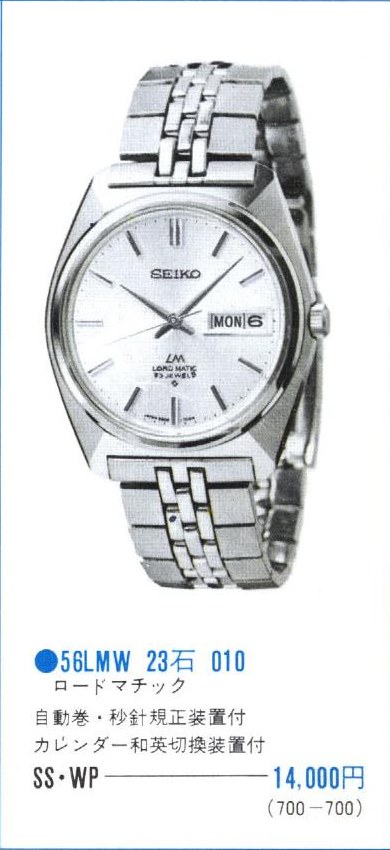

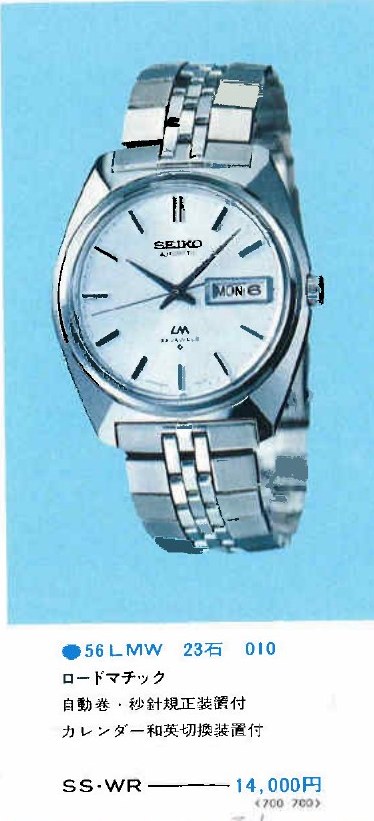

'69 1969 No. 1 JDM Catalog p. 7 · ¥14,000
56LMW 010

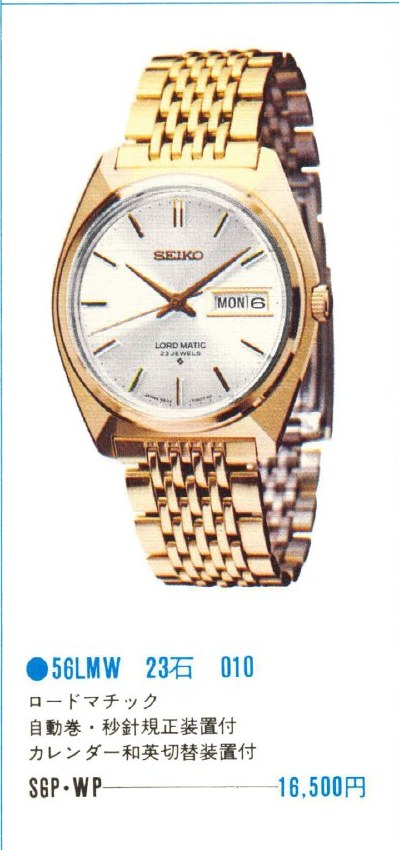

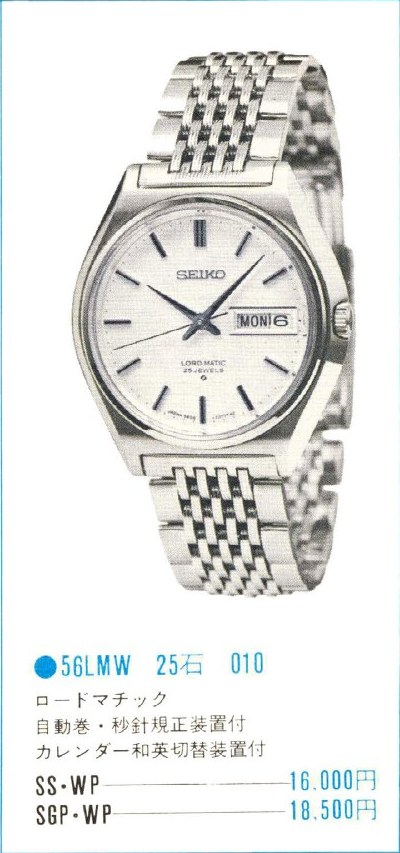

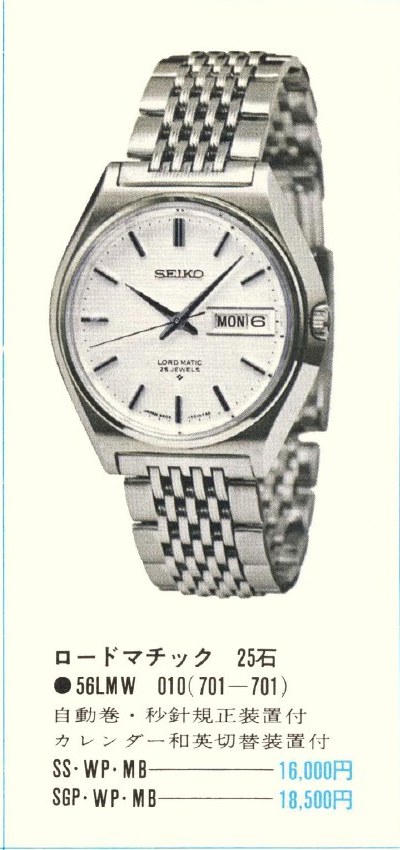

'69 1969 No. 2 JDM Catalog p. 8 · ¥17,000
56LMW 010
'69 1969 No. 2 JDM Catalog p. 11
56LMW 010

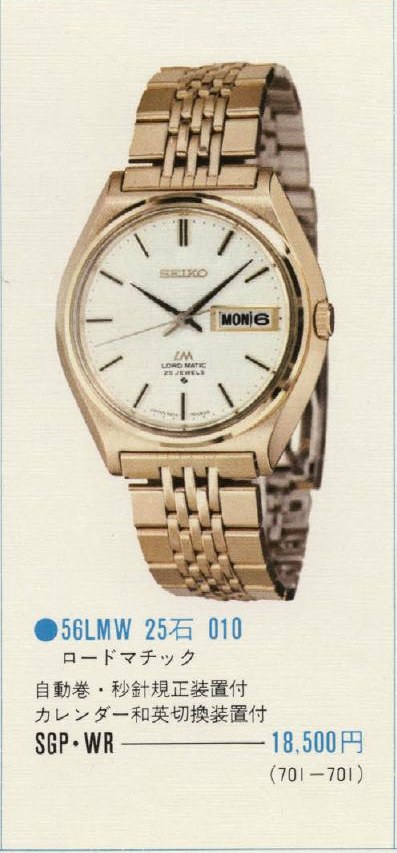

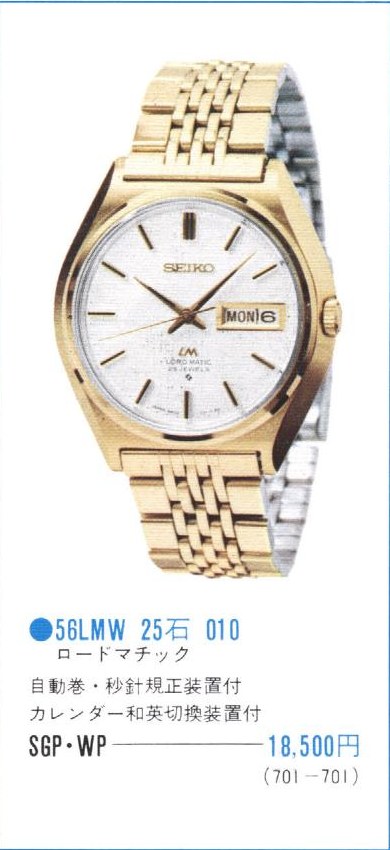

'71 1971 Seiko JDM Catalog No.1 p. 21 · ¥18,500
56LMW 010
'71 1971 Seiko JDM Catalog No.1 p. 22
56LMW 010

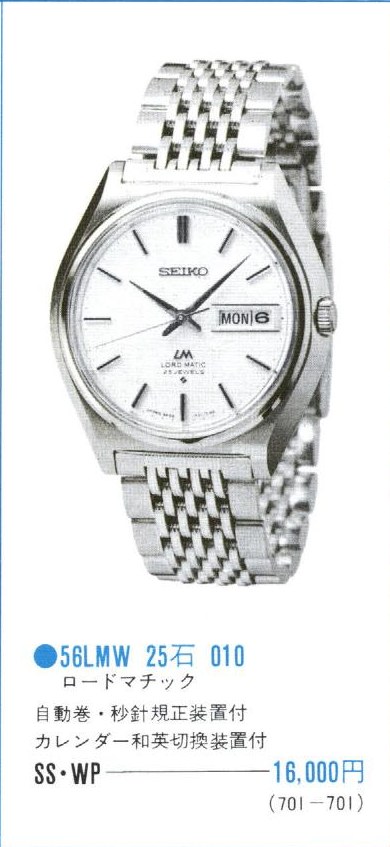

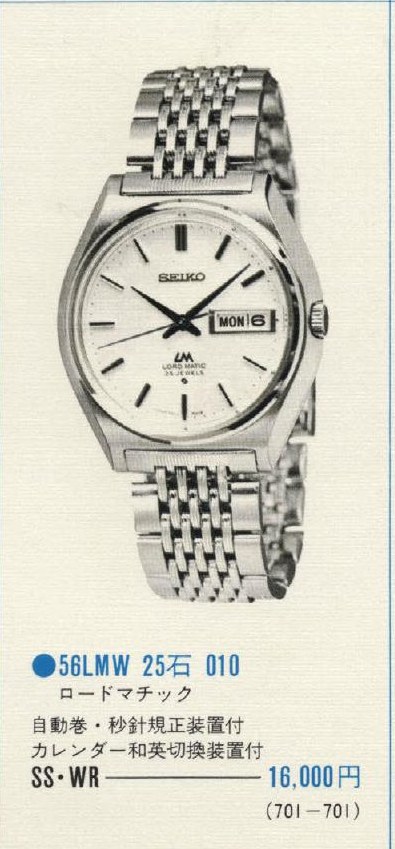

'71 1971 Seiko JDM Catalog No.1 p. 23 · ¥16,000
56LMW 010
'71 1971 Seiko JDM Catalog No.1 p. 25 · ¥15,000
56LMW 010

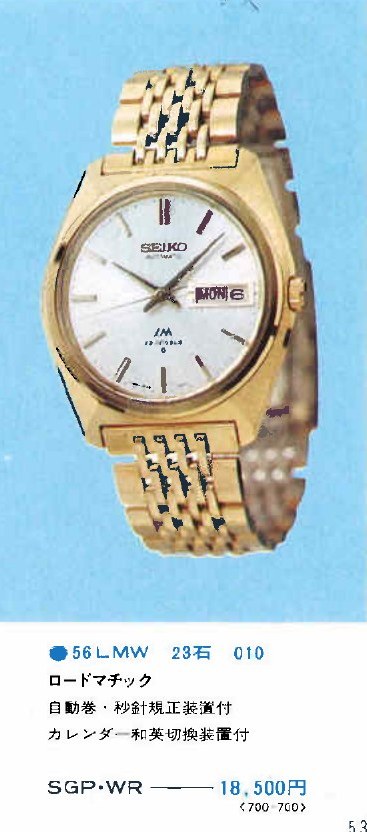

'72 1972 Seiko JDM Catalog p. 38 · ¥18,500
56LMW 010
'72 1972 Seiko JDM Catalog p. 41 · ¥17,000
56LMW 010

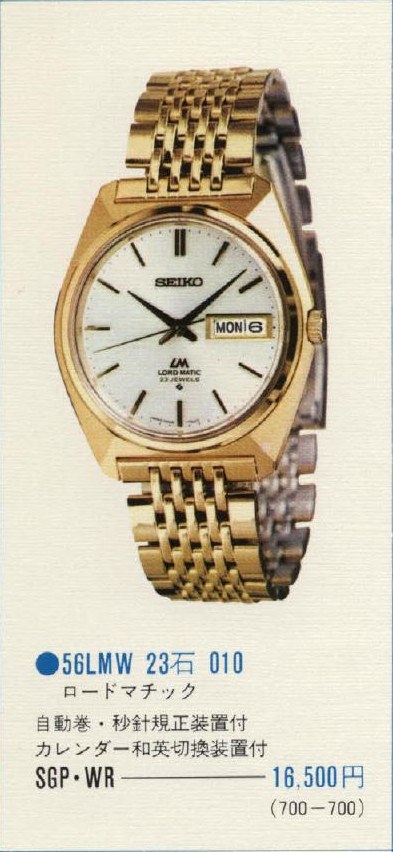

'72 1972 Seiko JDM Catalog p. 43 · ¥16,500
56LMW 010
'72 1972 Seiko JDM Catalog p. 46 · ¥14,000
56LMW 010
'73 1973 Seiko JDM Catalog Vol.2 p. 33 · ¥16,500
56LMW 010
'73 1973 Seiko JDM Catalog Vol.2 p. 35 · ¥14,000
56LMW 010

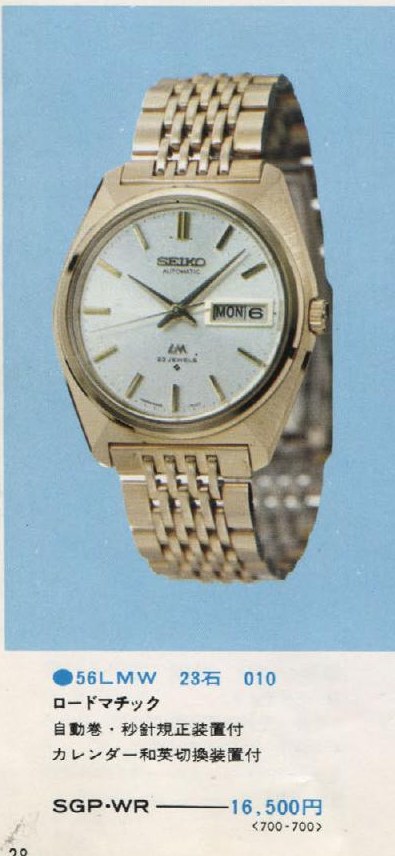

'74 1974 Seiko Catalog V2 p. 28 · ¥20,000
56LMW 010
'74 1974 Seiko Catalog V1 p. 51
56LMW_010
Clippings
Casing Parts Spread
